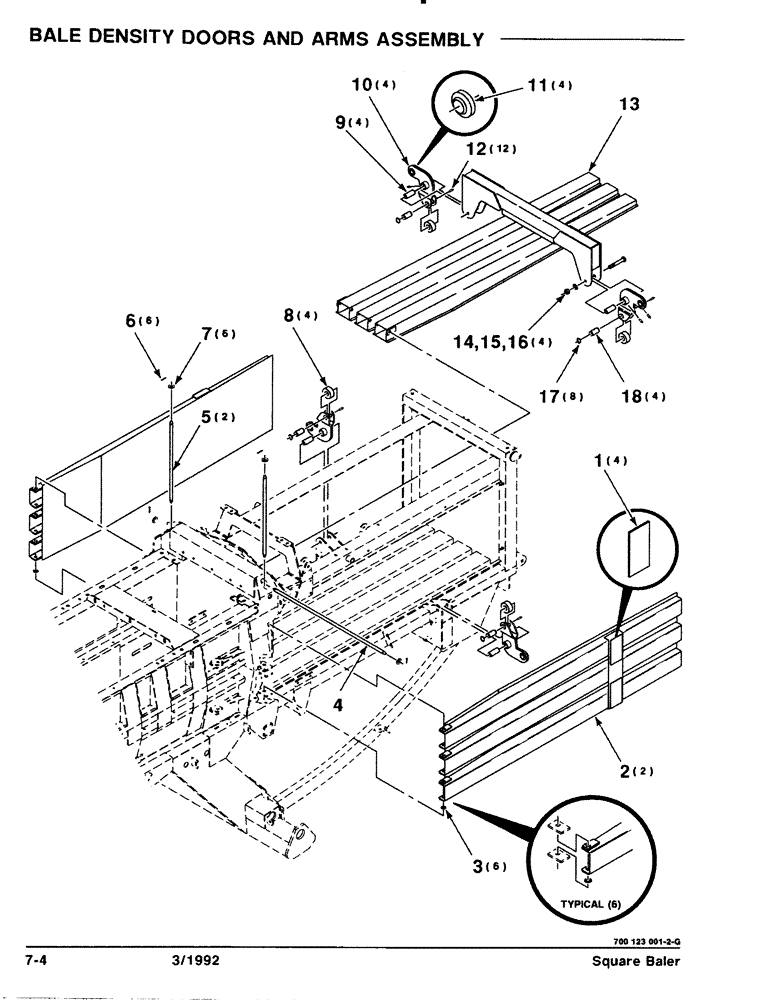

Запчасти Case IH 8570 (7-04) - BALE DENSITY DOORS AND ARMS ASSEMBLY (12) - MAIN FRAME

1

700123706

LARGE PLATE

PLATE

4шт.

2

700123700

DOOR

WA - SIDE (Includes Item 1)

2шт.

3

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

6шт.

4

700123710

PIN

- TOP

1шт.

5

700123709

PIN

- SIDE

2шт.

6

62281

PIN

1/4 X 1-1/4 COTTER PIN

6шт.

7

705566

WASHER

3/4 HARDENED PLAIN WASHER

6шт.

8

700113614

ROLLER

4шт.

9

700123697

BUSHING

4шт.

10

700123720

CRANK

WA - BELL (Includes Item 11)

4шт.

11

700706269

BALL JOINT

BALL - JOINT

4шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

12шт.

13

700123712

DOOR

WA - UPPER

1шт.

14

703660

BOLT,Hex 3/4" - 10 x 5", Gr 5

3/4-10 X 5 C

4шт.

15

705111

LOCK WASHER,3/4"

3/4"

4шт.

16

704528

NUT,3/4"-10, G5

3/4-10 H

4шт.

17

852137

RING, SNAP

RING - RETAINING

8шт.

18

700123699

PIN

4шт.
