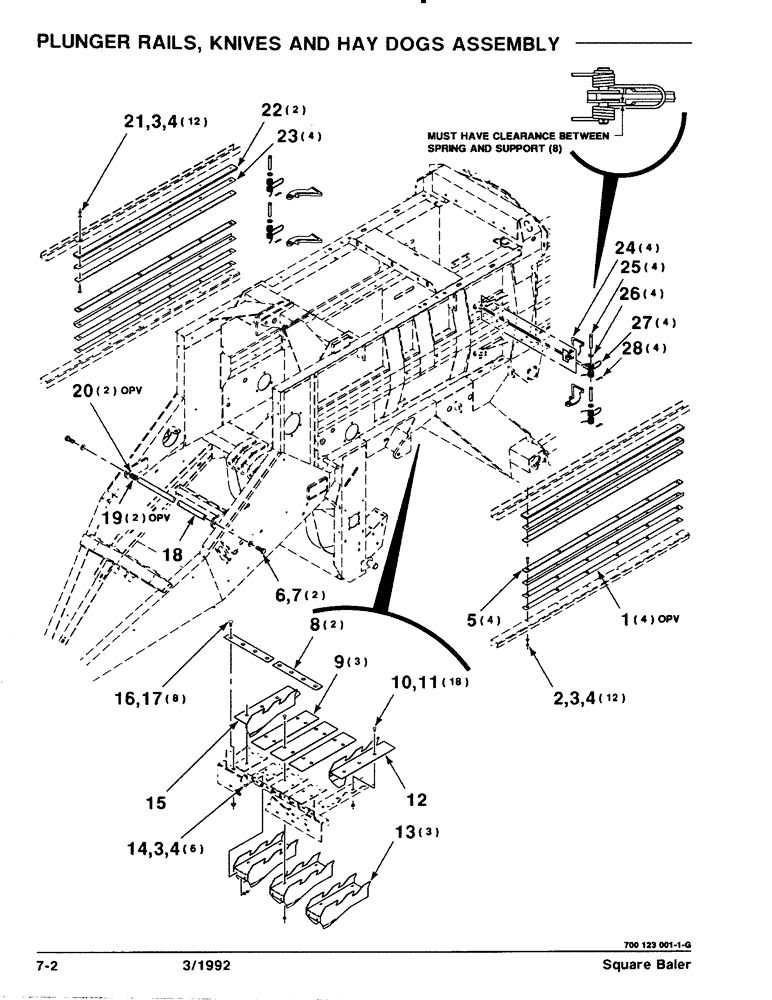

Запчасти Case IH 8570 (7-02) - PLUNGER RAILS, KNIVES AND HAY DOGS ASSEMBLY (12) - MAIN FRAME

1

700123726

SHIM

- 0.46 / .018

4шт.

2

771808

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/4"

3/8-16 X 1-1/4 HSFCHCS SPL

12шт.

3

705038

CONTROL VALVE

3/8"

30шт.

4

704023

NUT,3/8"-16, G5

3/8-16 H

30шт.

5

700123724

RAIL

- HARDENED

4шт.

6

7702160

BOLT,Hex 3/4" - 10 x 2", Gr 5

3/4-10 X 2 C

2шт.

7

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

8

700710641

KNIFE

2шт.

9

700113616

WEAR PLATE

PLATE - WEAR

3шт.

10

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PLOW BOLT

18шт.

11

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

18шт.

12

700123733

DRIVE DOG

HAY DOG WA - LEFT

1шт.

13

700123728

DRIVE DOG

HAY DOG WA

3шт.

14

700047

BOLT

3/8-16 X 1 RHSNB

6шт.

15

700123734

DRIVE DOG

HAY DOG WA - RIGHT

1шт.

16

707448

BOLT

1/2-13 X 1-1/2 PLOW BOLT

8шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

18

700123494

SUPPORT

1шт.

19

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

20

852087

BUSHING

3/4 X 10 GAUGE NRMB

2шт.

21

8701377

HEX SOC SCREW,Flat Hd, CSK, 3/8" - 16 x 1 3/4"

3/8-16 X 1-3/4 HSFCHCS SPL

12шт.

22

700123725

RAIL

2шт.

23

700123727

ANGLE

- SHIELD

4шт.

24

6529473

DRIVE DOG

HAY DOG

4шт.

25

700706685

PIN

5/8 X 3-3/4 CLEVIS PIN

4шт.

26

NLS

NO LONGER SERVICED

5/8 HARDENED PLAIN WASHER

4шт.

27

700706376

SPRING

- TORSION

4шт.

28

S120261

PIN

.148 WIRE HAIRPIN COTTER

4шт.
