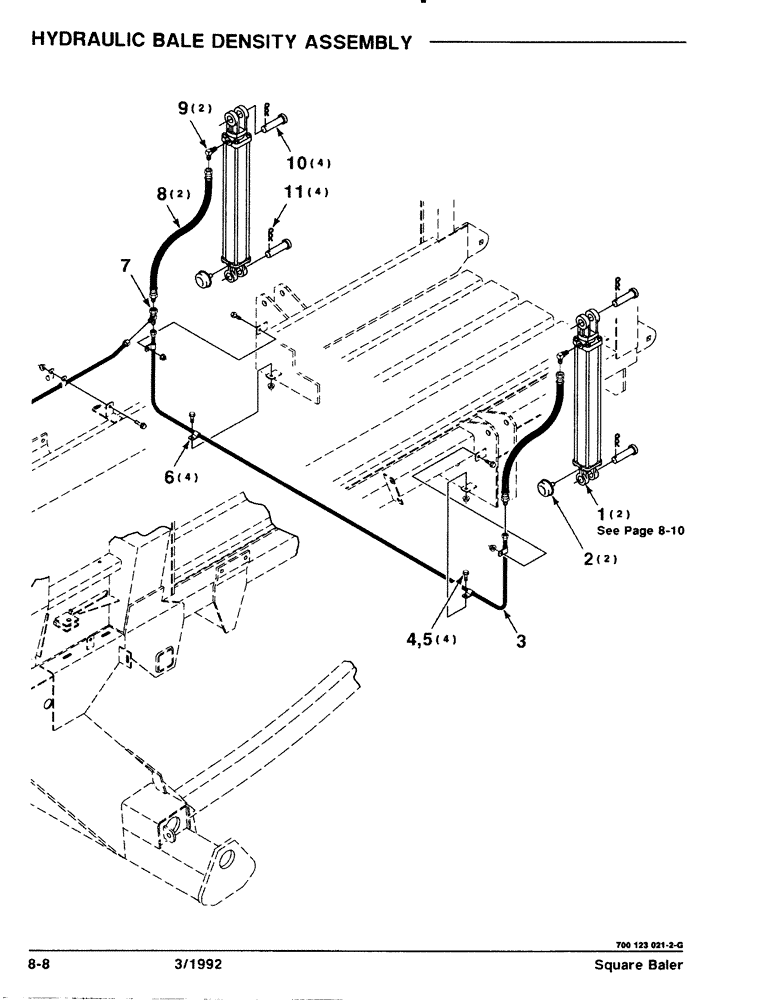

Запчасти Case IH 8570 (8-08) - HYDRAULIC BALE DENSITY ASSEMBLY (07) - HYDRAULICS

1

700711512

CYLINDER

- HYDRAULIC

2шт.

2

8799280

FILTER

2шт.

3

700710066

TUBE

LINE - HYDRAULIC

1шт.

4

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

4шт.

5

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

6

751628

CLAMP

1/4 CLAMP

4шт.

7

700701355

3 WAY CONNECTION

TEE

1шт.

8

700710059

HYDRAULIC HOSE,6.35 mm ID x 530.00 mm, SAE 100R7

6.35 mm ID x 530.00 mm, SAE 100R7

2шт.

9

7746381

ELBOW

2шт.

10

763201

PIN

1 X 3-1/2 CLEVIS PIN

4шт.

11

S120261

PIN

.148 WIRE HAIR PIN COTTER

4шт.
