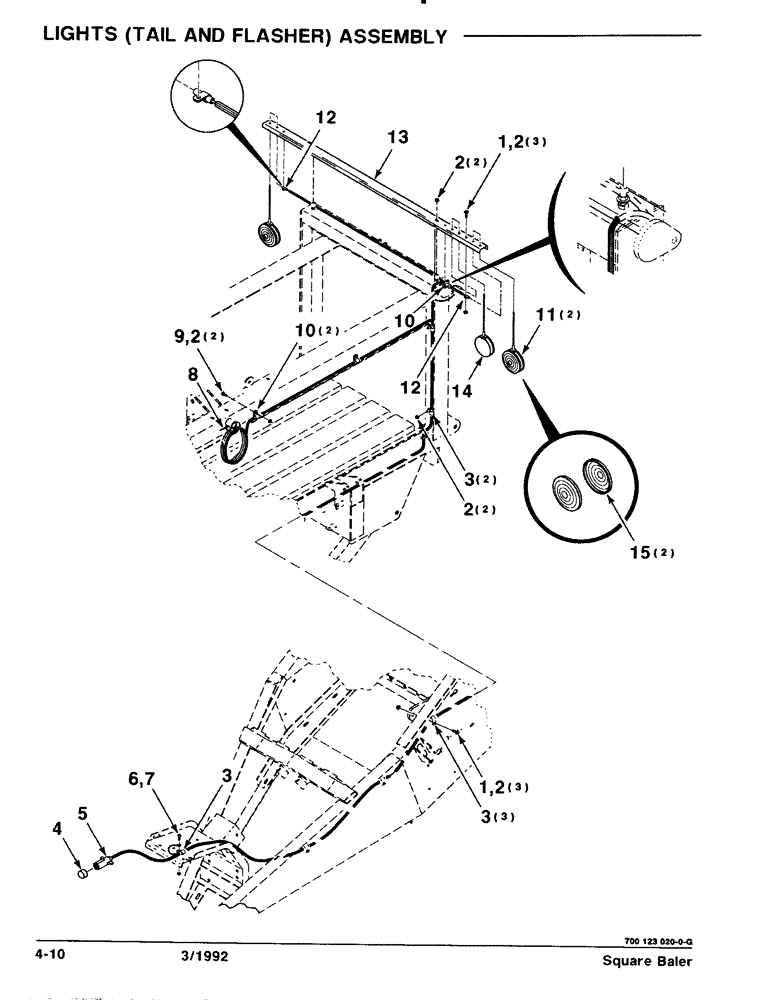

Запчасти Case IH 8570 (4-10) - LIGHTS, TAIL AND FLASHER ASSEMBLY (06) - ELECTRICAL

1

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

6шт.

2

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GRG

12шт.

3

751487

CLAMP

1/2 ID CLAMP

6шт.

4

CAS745216

CAP

1шт.

5

700710062

HARNESS

- LIGHTS

1шт.

6

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 X 1 HWHMS

1шт.

7

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN GRG

1шт.

8

722470

MOUNTING CLIP

TIE - NYLON

1шт.

9

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

10

700707010

CLAMP

3/8 ID CLAMP

3шт.

11

700708036

SIDE LAMP ASSY

LIGHT - FLASHER (Includes item 15)

2шт.

12

751628

CLAMP

1/4 ID CLAMP

2шт.

13

700123423

CHANNEL

1шт.

14

700706634

STOP LIGHT

LIGHT - TAIL

1шт.

15

700711749

LENS

- FLASHER

2шт.
