(4-06) - ELECTRICAL HARNESS SERVICE PARTS

Запчасти Case IH 8570 (4-06) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL

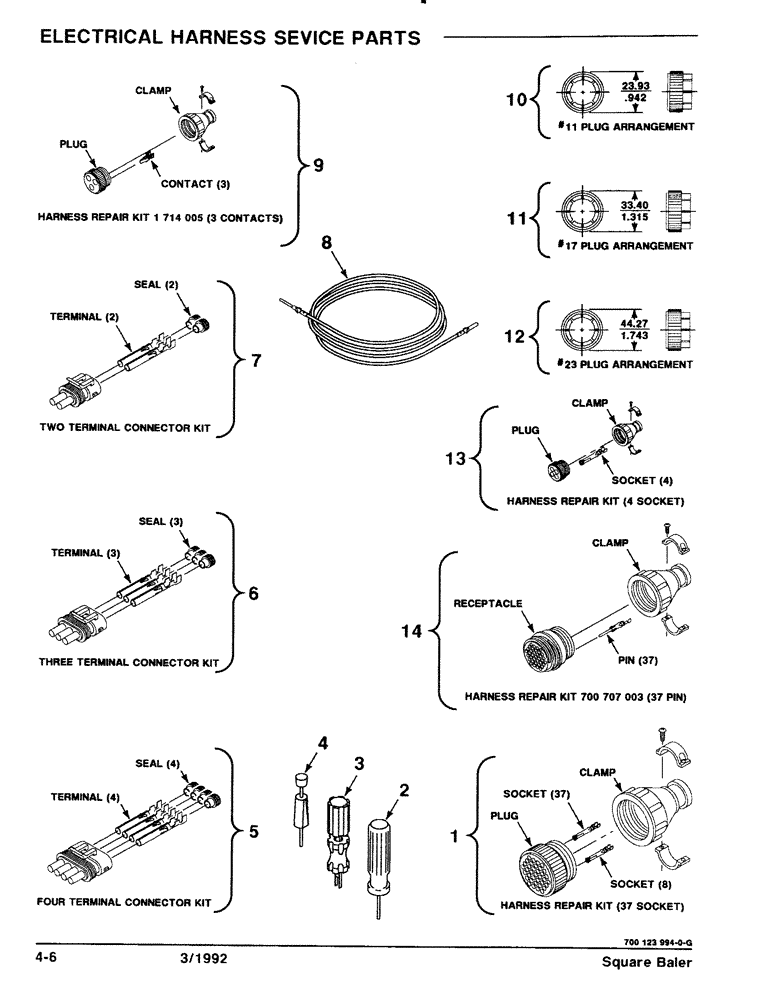

Схема запчастей Case IH 8570 - (4-06) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL
5
9
3
7
14
10
13
1
12
6
8
2
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707004

REPAIR KIT

KIT - HARNESS REPAIR

1шт.

2

700707012

TERMINAL CONNECTOR

TOOL - CONNECTOR REPAIR

1шт.

3

700707014

TERMINAL CONNECTOR

TOOL - CONNECTOR REPAIR

1шт.

4

700707013

TOOL

- CONNECTOR REPAIR

1шт.

5

700707002

REPAIR KIT

KIT - HARNESS REPAIR

1шт.

6

700707001

REPAIR KIT

KIT - HARNESS REPAIR

1шт.

7

700706999

REPAIR KIT

KIT - HARNESS REPAIR

1шт.

8

700708333

WIRE

- TEST

1шт.

9

1714005

PACKAGE,SERVICE

KIT - HARNESS REPAIR (Female End)

1шт.

Ref #9 the complete connector is P/N 225165c1

1шт.

10

700707817

RING

- COUPLING

1шт.

11

700707819

LOCKING RING

RING - COUPLING

1шт.

12

700707820

LOCKING RING

RING - COUPLING

1шт.

13

700712132

REPAIR KIT

KIT - HARNESS REPAIR

1шт.

14

700707003

REPAIR KIT

KIT - HARNESS REPAIR

1шт.
