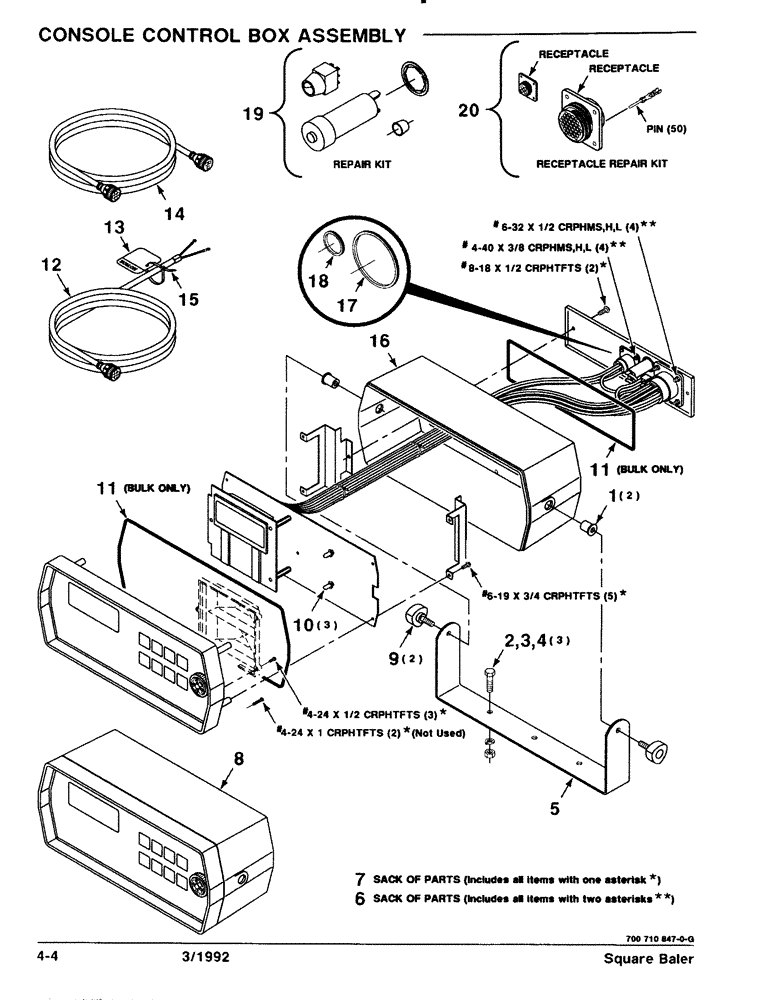

Запчасти Case IH 8570 (4-04) - CONSOLE CONTROL BOX ASSEMBLY (06) - ELECTRICAL

1

700707294

PUSH-ON NUT

RUBBER WELL NUT

2шт.

2

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

3шт.

3

705012

LOCK WASHER

1/4"

3шт.

4

704007

NUT,1/4"-20, G5

1/4-20 H

3шт.

5

700114077

SUPPORT

- CONTROL BOX

1шт.

6

700707377

KIT

SACK OF PARTS

1шт.

7

700707378

KIT

SACK OF PARTS

1шт.

8

700710847

CONSOLE

CONTROL BOX COMPLETE

1шт.

9

700707295

KNOB

2шт.

10

700707457

BULB

LAMP AND HOLDER

3шт.

11

700707383

GASKET

- SPONGE CORD (BULK - 10 FT)

1шт.

12

700707598

WIRE HARNESS

CABLE ASSEMBLY

1шт.

13

700707683

DECAL

- NOTICE

1шт.

14

700712135

WIRE HARNESS

CABLE ASSEMBLY

1шт.

15

8722431

STRAP

TIE - NYLON

1шт.

16

700707296

PANEL

COVER

1шт.

17

700711660

SEAL

1шт.

18

700712102

SEAL

1шт.

19

700707382

REPAIR KIT

KIT - REPAIR

1шт.

20

700712134

REPAIR KIT

KIT - RECEPTACLE REPAIR

1шт.
