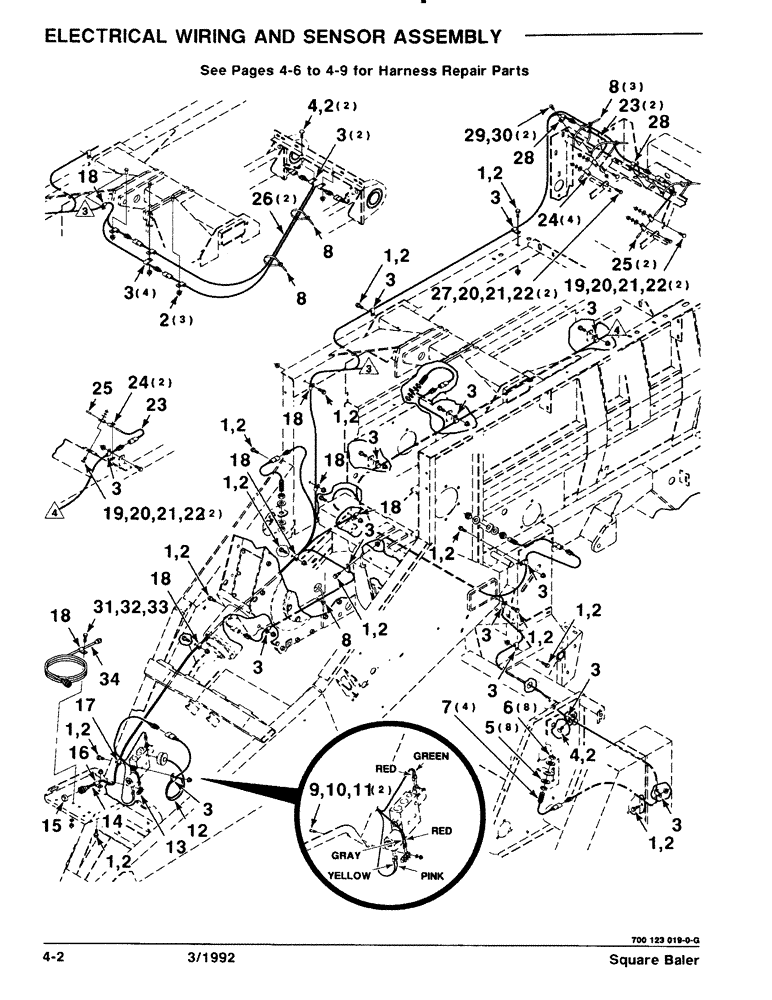

Запчасти Case IH 8570 (4-02) - ELECTRICAL WIRING AND SENSOR ASSEMBLY (06) - ELECTRICAL

1

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

13шт.

2

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

19шт.

3

700707010

CLAMP

3/8 CLAMP

20шт.

4

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

3шт.

5

705566

WASHER

3/4 HARDENED PLAIN WASHER

8шт.

6

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 HJN GR2

8шт.

7

700706398

SENSOR

PTO SENSOR

4шт.

8

722470

MOUNTING CLIP

TIE - NYLON

6шт.

9

700710188

SCREW

#6-32 X 3/4 CRPHMS GR2

2шт.

10

705129

LOCK WASHER

#6 L

2шт.

11

704551

NUT

6-32 H GR2

2шт.

12

700113064

PRESSURE SWITCH

PRESSURE TRANSDUCER ASM

1шт.

13

700711279

TERMINAL STRIP

TERMINAL STRIP

1шт.

14

700710750

HARNESS

- WIRE, MAIN

1шт.

15

745224

CAP

1шт.

16

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

1-1/4 CLAMP

1шт.

17

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

3/4 CLAMP

1шт.

18

755744

CLAMP

5/8 CLAMP

7шт.

19

7770159

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

4шт.

20

705517

WASHER

1/4 HARDENED PLAIN WASHER

6шт.

21

705012

LOCK WASHER

1/4"

6шт.

22

704007

NUT,1/4"-20, G5

1/4-20 H

6шт.

23

700113863

SENSOR

SWITCH ASM

3шт.

24

751321

CLAMP

1/4 CLAMP

6шт.

25

700706340

MAGNET

3шт.

26

700710751

HARNESS

CABLE

2шт.

27

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C

2шт.

28

700708090

CLAMP

3/8 CLAMP

2шт.

29

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

30

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

31

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

32

705038

CONTROL VALVE

3/8"

1шт.

33

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

34

700710069

HARNESS

- CABLE

1шт.

Ref #34: There is not an extension available for the control console's 37 pin harness. Another complete harness (P/N 700706459) must be used.

1шт.
