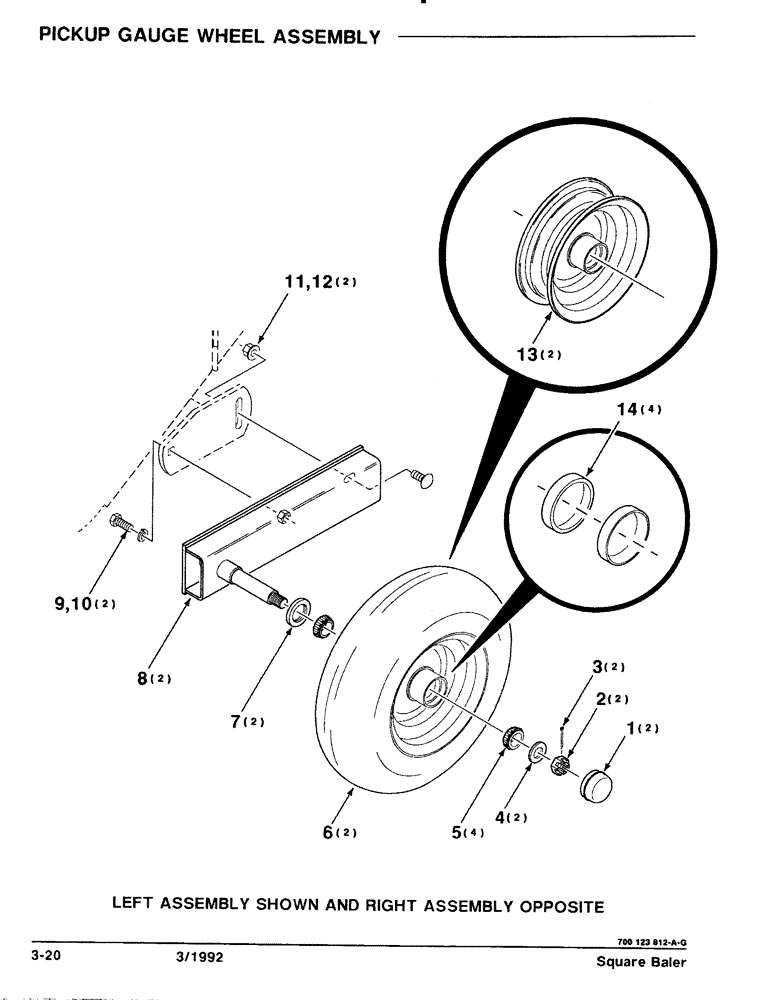

Запчасти Case IH 8570 (3-20) - PICKUP GAUGE WHEEL ASSEMBLY Pickup

1

T27814

CAP

- HUB

2шт.

2

7704208

SLOTTED NUT

3/4-16 SLOTTED HEX NUT

2шт.

3

432-824

COTTER PIN,1/8" x 1 1/2"

1/8 X 1-1/2 COTTER PIN

2шт.

4

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

5

D29266

ROLLER BEARING,1" ID x 0.58"

BEARING - CONE

4шт.

6

700708049

WHEEL

AND TIRE ASSEMBLY

2шт.

7

44248

OIL SEAL

2шт.

8

700123995

STRUT

WA - WHEEL

2шт.

9

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

12

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

13

700708048

WHEEL ASSY

WHEEL ASSEMBLY (Includes item 14)

2шт.

14

572564R1

BEARING CUP

CUP - BEARING

4шт.
