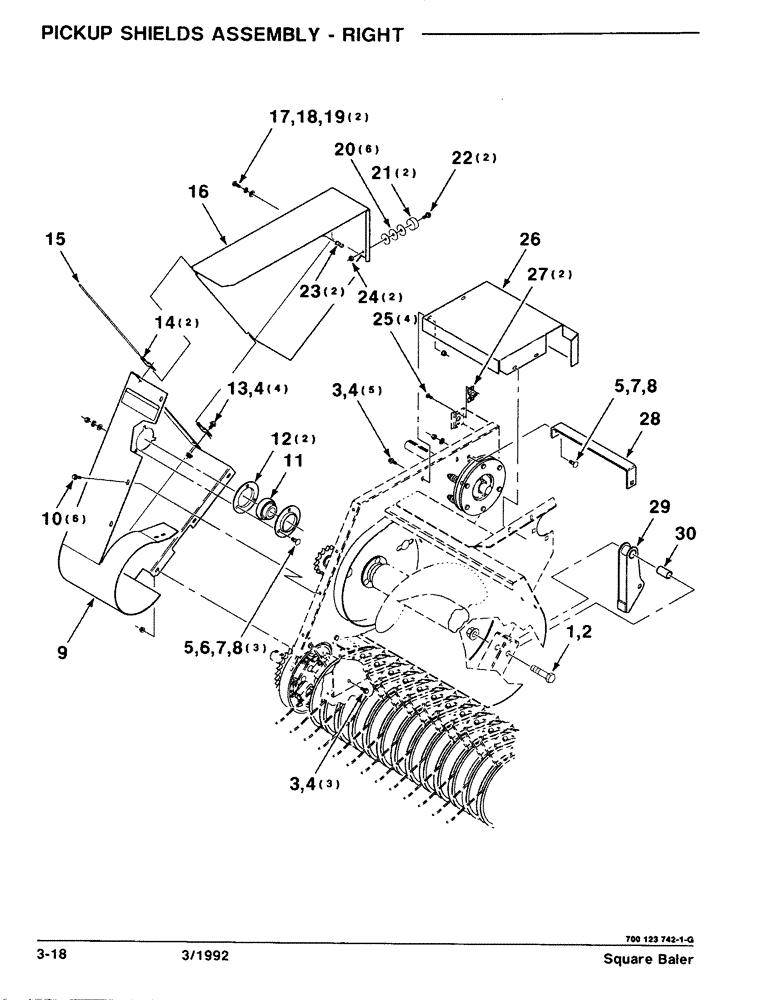

Запчасти Case IH 8570 (3-18) - PICKUP SHIELDS ASSEMBLY, RIGHT Pickup

1

7701543

BOLT,Hex 3/4" - 10 x 3", Gr 5

3/4-10 X 3 C

1шт.

2

704718

LOCK NUT

3/4-10 HTLN GR/B

1шт.

3

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

8шт.

4

704239

FRONT AXLE

5/16-18 HFSLN GR/F

12шт.

5

700047

BOLT

3/8-16 X 1 RHSNB

4шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

3шт.

7

705038

CONTROL VALVE

3/8"

4шт.

8

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

9

700123789

PANEL

SHIELD - RIGHT

1шт.

10

703132

SERRATED SCREW

5/16-18 X 3/4 HFSS

6шт.

11

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- SPHERICAL

1шт.

12

51417

PIPE

- BEARING

2шт.

13

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

4шт.

14

700108658

SUPPORT

- HINGE

2шт.

15

6844344

PIN

- HINGE

1шт.

16

700123796

SHIELD

- RIGHT

1шт.

17

700704838

SCREW

#10-32 X 1/2 CRPHMS GR2

2шт.

18

705004

LOCK WASHER

#10 L

2шт.

19

70925966

WASHER

#10 PLAIN WASHER

2шт.

20

76695

WASHER

FENDER - WASHER

6шт.

21

700708648

BUMPER

2шт.

22

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

2шт.

23

700710675

STUD

- LATCH

2шт.

24

700705521

RIVET

#12-24 HCLN SPL

2шт.

25

1705912

SCREW,#8 - 18 x 1/2"

#8-18 X 1/2 CRTHTFTS

4шт.

26

700123849

SHIELD

1шт.

27

700710676

CONTAINER

CLIP

2шт.

28

700123807

SUPPORT

1шт.

29

700123808

PIVOT

WA - CYLINDER

1шт.

30

700113281

SPACER

1шт.
