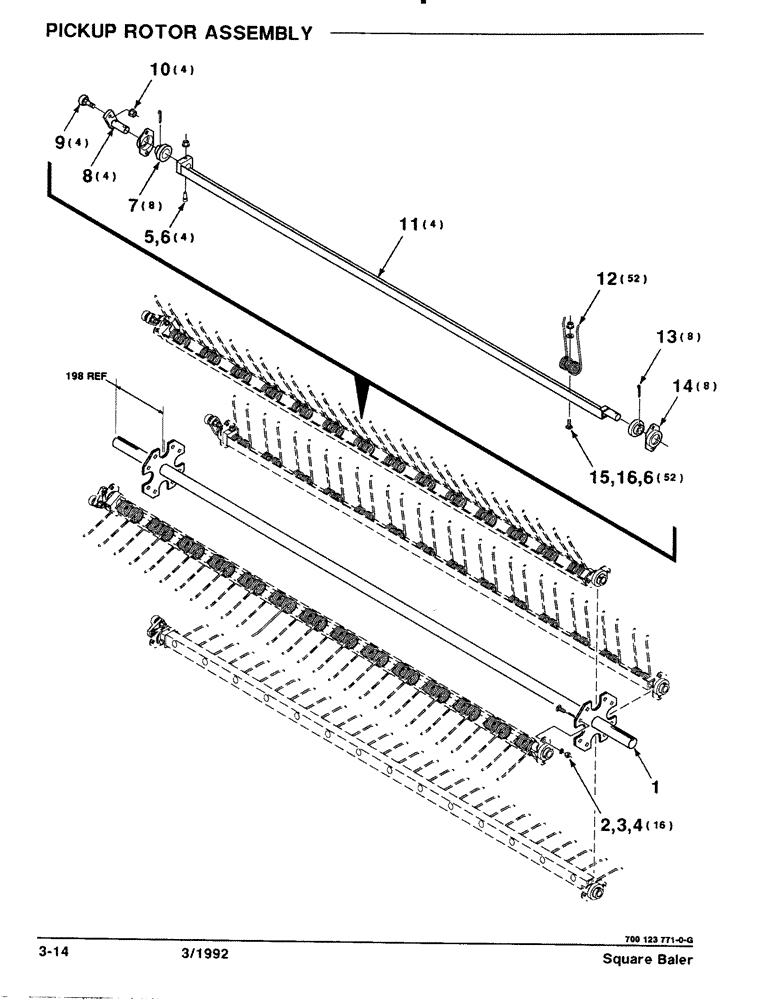

Запчасти Case IH 8570 (3-14) - PICKUP ROTOR ASSEMBLY Pickup

1

700108609

ROTOR

WA

1шт.

2

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

16шт.

3

705038

CONTROL VALVE

3/8"

16шт.

4

704023

NUT,3/8"-16, G5

3/8-16 H

16шт.

5

701367

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 X 2-1/4 HSHCS SPL

4шт.

6

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

56шт.

7

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - CYLINDRICAL

8шт.

8

700108618

ARM

CRANK WA

4шт.

9

700705612

CAM FOLLOWER

BEARING - CAM, FOLLOWER

4шт.

10

700707867

NUT

1/2-20 HFTLN GR/G

4шт.

11

700123867

ANGLE

WA

4шт.

12

700709760

TINE

TINE - DOUBLE

52шт.

13

62307

PIN

1/4 X 2 COTTER PIN

8шт.

14

700108622

FLANGED BEARING

FLANGE - BEARING

8шт.

15

700047

BOLT

3/8-16 X 1 RHSNB

52шт.

16

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

52шт.
