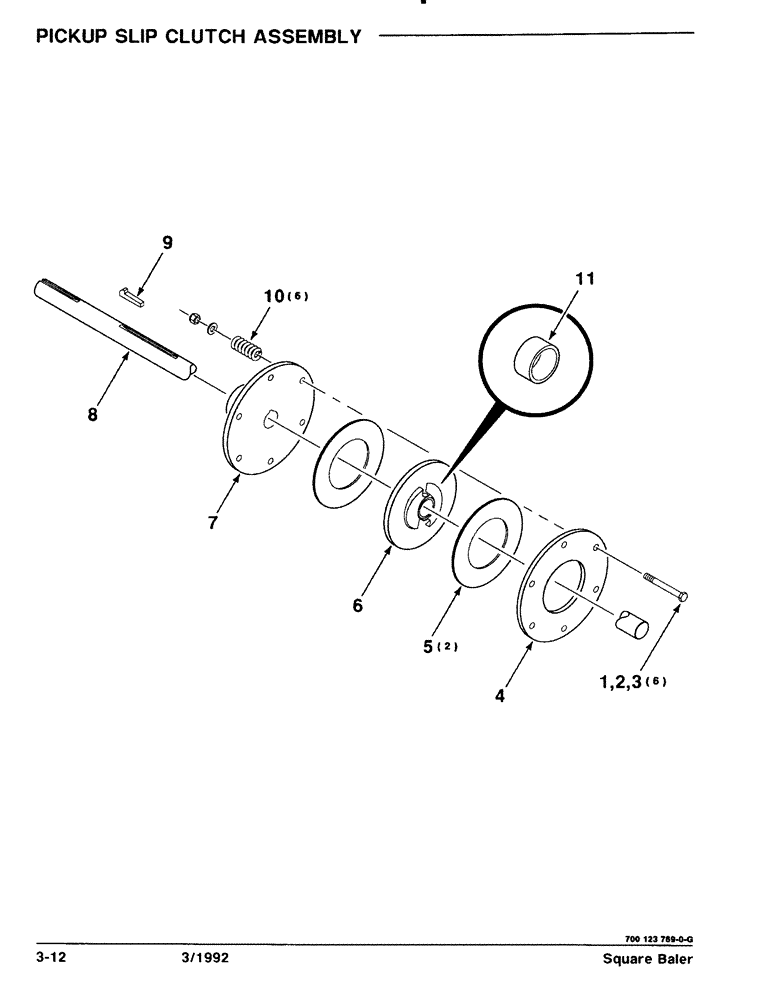

Запчасти Case IH 8570 (3-12) - PICKUP SLIP CLUTCH ASSEMBLY Pickup

1

873174

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8-16 X 3-1/4 C

6шт.

2

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

6шт.

3

74781

NUT

3/8-16 LHSN

6шт.

4

392464

LARGE PLATE

PLATE - PRESSURE

1шт.

5

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

DISC - FRICTION

2шт.

6

700108665

CLUTCH ASSEMBLY

(Includes Item 11)

1шт.

7

700108661

PLATE

WA - CLUTCH

1шт.

8

700123770

SHAFT

1шт.

9

61622

BUCKET TOOTH KEY

1/4 X 1-1/2 GIB KEY

1шт.

10

58107

SPRING

- COMPRESSION

6шт.

11

852749

BRONZE BUSHING

BUSHING - BRONZE

1шт.
