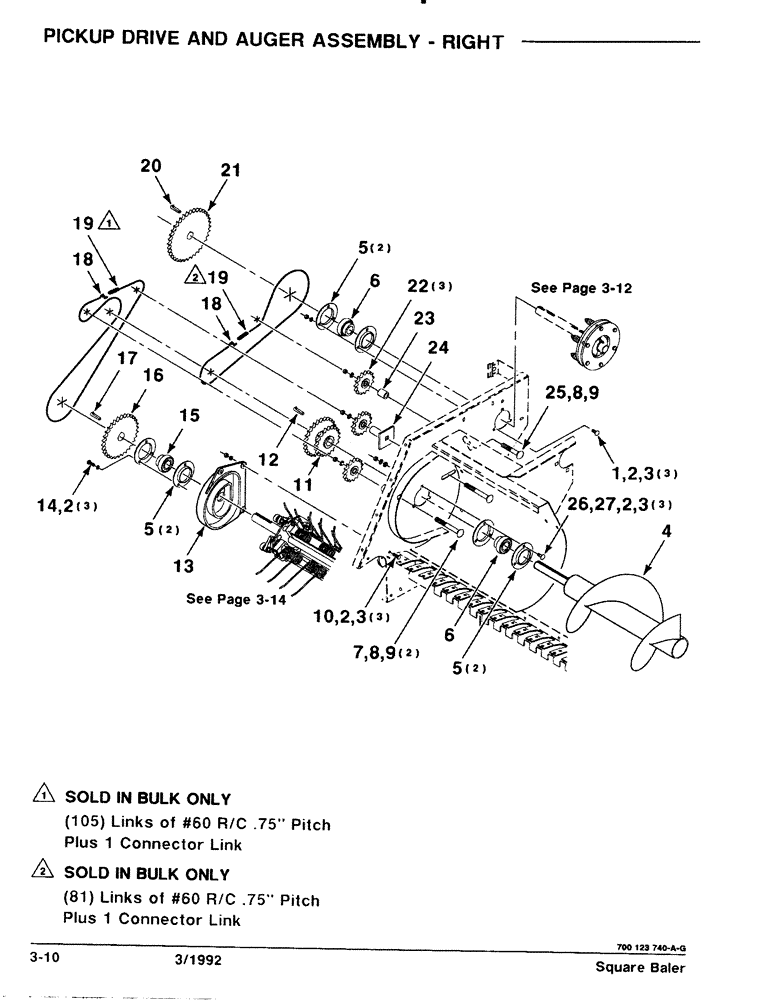

Запчасти Case IH 8570 (3-10) - PICKUP DRIVE AND AUGER ASSEMBLY, RIGHT Pickup

1

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

3шт.

2

705038

CONTROL VALVE

3/8"

12шт.

3

704023

NUT,3/8"-16, G5

3/8-16 H

9шт.

4

700123765

AUGER

WA - RIGHT

1шт.

5

51417

PIPE

- BEARING

6шт.

6

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- SPHERICAL

2шт.

7

7870256

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8-11 X 5 RHSNB

2шт.

8

705061

PLUG

5/8"

3шт.

9

704130

NUT,5/8"-11, G5

5/8-11 H

3шт.

10

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

3шт.

11

700123775

SPROCKET ASSY.

SPROCKET WA

1шт.

12

61978

KEY

1/4 X 2-1/2 GIB KEY

1шт.

13

700108672

CAM

TRACK - CAM

1шт.

14

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

3шт.

15

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - SPHERICAL

1шт.

16

700123774

SPROCKET ASSY.

SPROCKET WA

1шт.

17

761213

KEY

5/16 X 1-1/2 GIB KEY

1шт.

18

611361R91

DRAG LINK

LINK - CONNECTOR, #60 R/C

2шт.

19

611362R91

CHAIN (AG)

CHAIN - ROLLER, #60 (10 FOOT BULK)

2шт.

20

61739

KEY

1/4 X 1/4 GIB KEY

1шт.

21

700108659

SPROCKET ASSY.

SPROCKET WA

1шт.

22

87726

NUT

SPROCKET - IDLER

3шт.

23

6268494

SPACER

1шт.

24

700108636

SUPPORT

WA

1шт.

25

7870215

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/2", G5

5/8-11 X 3-1/2 RHSNB

1шт.

26

700047

BOLT

3/8-16 X 1 RHSNB

3шт.

27

705533

WASHER

3/8 HARDENED PLAIN WASHER

3шт.
