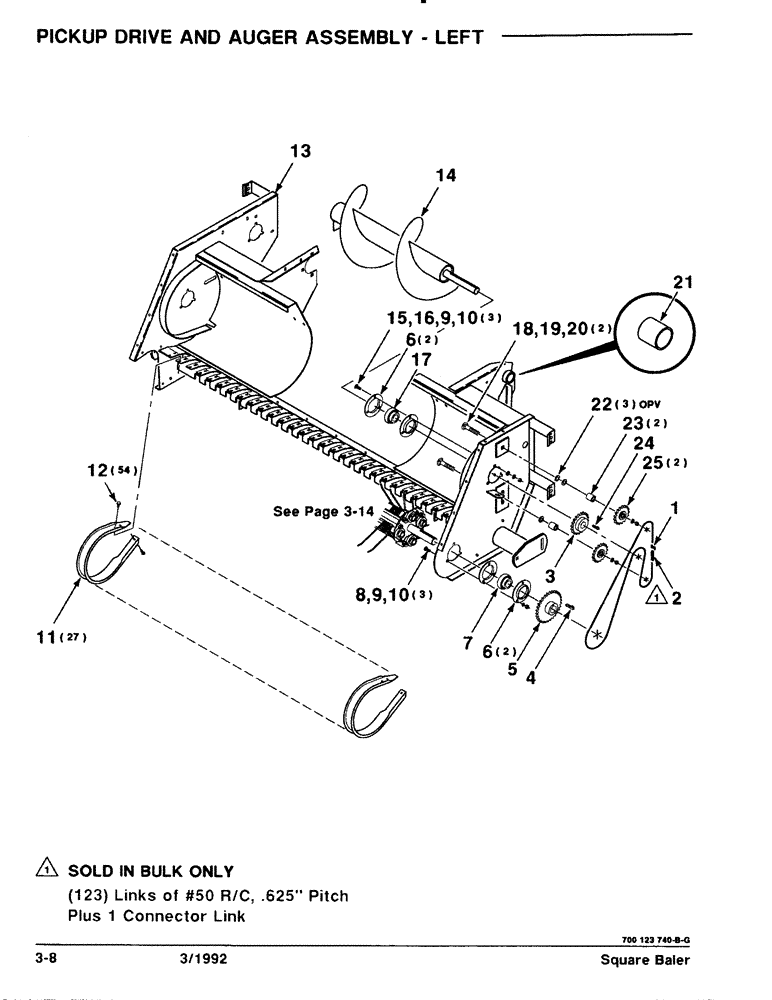

Запчасти Case IH 8570 (3-08) - PICKUP DRIVE AND AUGER ASSEMBLY, LEFT Pickup

1

1310D

LINK

- CONNECTOR, #50 R/C

1шт.

2

1790D

CHAIN (AG)

CHAIN - ROLLER, #50 (10 FOOT BULK)

1шт.

3

86439

SPROCKET ASSY.

SPROCKET WA

1шт.

4

761213

KEY

5/16 X 1-1/2 GIB KEY

1шт.

5

700123773

SPROCKET ASSY.

SPROCKET WA

1шт.

6

617863R1

FLANGED BEARING

- BEARING

4шт.

7

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - SPHERICAL

1шт.

8

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

3шт.

9

705038

CONTROL VALVE

3/8"

6шт.

10

704023

NUT,3/8"-16, G5

3/8-16 H

6шт.

11

700108607

ANTI-WRAP PLATE

WRAPPER

27шт.

12

703132

SERRATED SCREW

5/16-18 X 3/4 HFSS

54шт.

13

700123741

MAGNET

PICKUP WA

1шт.

14

700123764

AUGER

WA - LEFT

1шт.

15

700047

BOLT

3/8-16 X 1 RHSNB

3шт.

16

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

3шт.

17

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- SPHERICAL

1шт.

18

7870215

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/2", G5

5/8-11 X 3-1/2 RHSNB

2шт.

19

705061

PLUG

5/8"

2шт.

20

704130

NUT,5/8"-11, G5

5/8-11 H

2шт.

21

802439

BUSHING

- BRONZE

1шт.

22

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

3шт.

23

6176655

BUSHING

SPACER

2шт.

24

61622

BUCKET TOOTH KEY

1/4 X 1-1/2 GIB KEY

1шт.

25

211623C91

SPROCKET

- IDLER

2шт.
