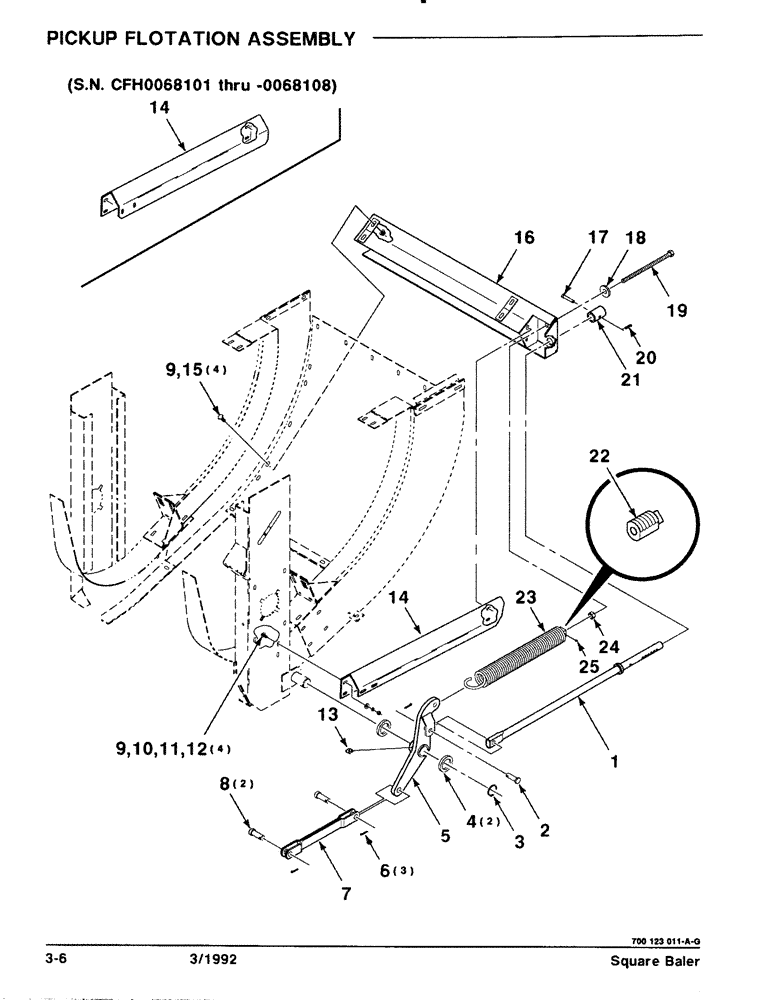

Запчасти Case IH 8570 (3-06) - PICKUP FLOTATION ASSEMBLY Pickup

1

700123446

LINK

1шт.

2

63693

PIN

5/8 X 2 CLEVIS PIN

1шт.

3

740860

RING, SNAP

RETAINER RING

1шт.

4

740522

WASHER

1-1/2 X 10 GUAGE WRMB

2шт.

5

700123440

CRANK

2шт.

6

62117

PIN

1/8 X 1-1/4 COTTER PIN

3шт.

7

700123444

LINK

1шт.

8

763177

SPARE PART

3/4 X 2 CLEVIS PIN

2шт.

9

700047

BOLT

3/8-16 X 1 RHSNB

8шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

4шт.

11

705038

CONTROL VALVE

3/8"

4шт.

12

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

13

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 ZERK

1шт.

14

700123453

SUPPORT

(S.N. CFH0068101 thru - 0068108)

1шт.

14

700123321

SUPPORT

(S.N. CFH0068109 and on)

1шт.

15

704247

NUT

3/8-16 HFSLN

4шт.

16

700123449

SUPPORT

1шт.

17

863381

CLIP,9.53mm OD x 50.8mm L

3/8 X 2 CLEVIS PIN

1шт.

18

NLS

NO LONGER SERVICED

5/8 HARDENED PLAIN WASHER

1шт.

19

702282

BOLT,Hex, 5/8" - 11 x 10", Gr 5

5/8-11 X 10 FTB

1шт.

20

T54573

PIN

.120 HAIRPIN COTTER

1шт.

21

700113296

COLLAR

1шт.

22

6845879

PLUG

- SPRING

1шт.

23

6522700

SPRING

ASSEMBLY (Includes Item 22)

1шт.

24

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
