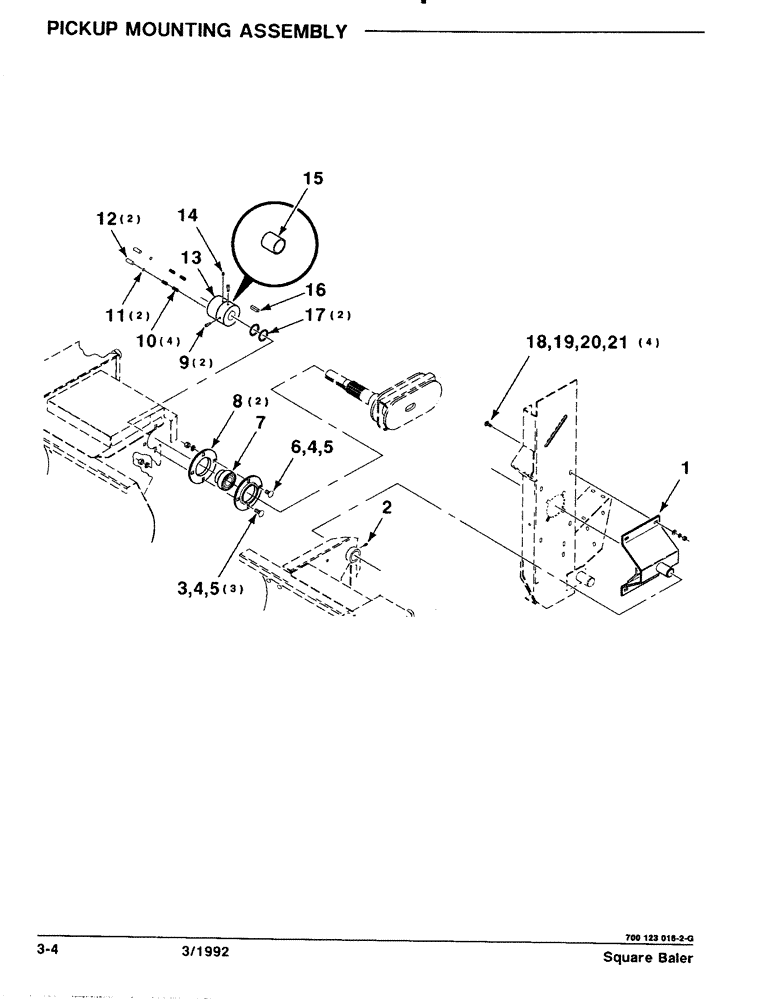

Запчасти Case IH 8570 (3-04) - PICKUP MOUNTING ASSEMBLY Pickup

1

700123797

SUPPORT

- PICKUP, LEFT

1шт.

2

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 ZERK

1шт.

3

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

704031

NUT

1/2-13 H

4шт.

6

7700131

SHROUD,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.

7

50468

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm

1шт.

8

663562R1

FLANGE

2шт.

9

69443

SET SCREW,Hex Soc, 3/8"-16 x 1"

3/8-16 X 1 CPHSSS

2шт.

10

58511

COMPRESSION SPRING

SPRING - COMPRESSION

4шт.

11

700108669

LARGE PLATE

PLATE

2шт.

12

37-1820

DOWEL,1/2" x 1 1/4"

1/2 X 1-1/4 PIN - DOWEL

2шт.

13

700123811

HUB

ASSEMBLY (Includes Item 15)

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

15

740233

BUSHING

- OILITE

1шт.

16

61770

KEY

3/8 X 3/8 X 1-1/2 KEY

1шт.

17

51200382

BUSHING

1-1/2 X 14 GUAGE NRMB

2шт.

18

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

4шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

4шт.

20

705038

CONTROL VALVE

WASHER, LOCK, 3/8"

4шт.

21

9628503

NUT,3/8"-16, G5

4шт.
