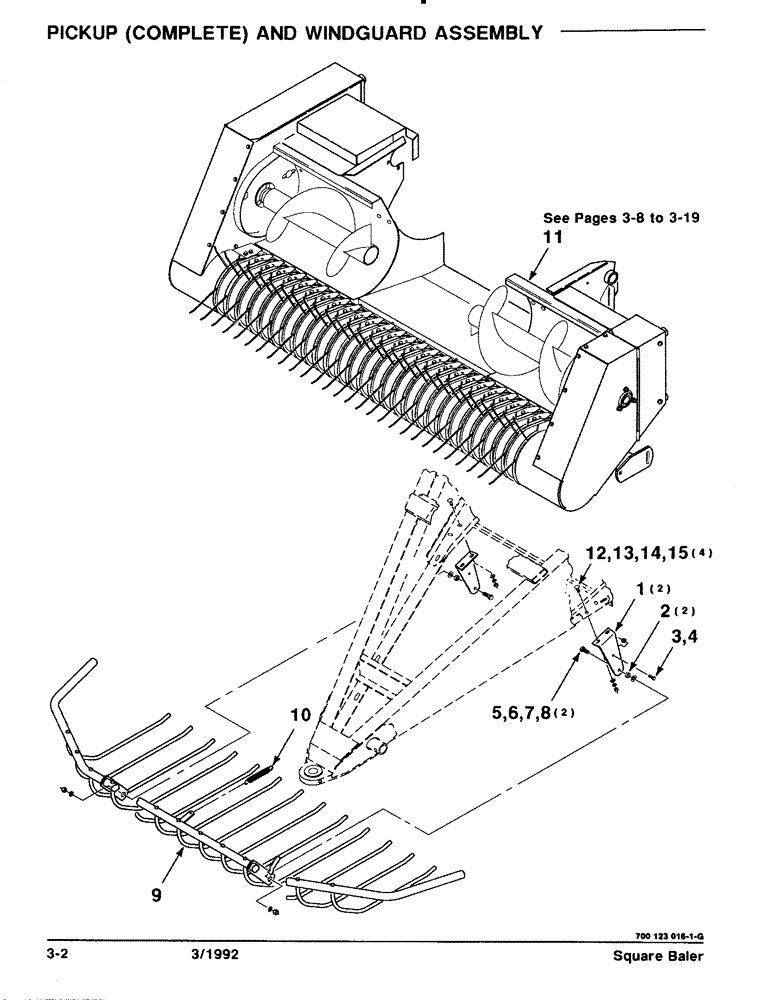

Запчасти Case IH 8570 (3-02) - PICKUP, COMPLETE AND WINDGUARD ASSEMBLY Pickup

1

700123787

SUPPORT

2шт.

2

700708272

BUSHING

SPACER

2шт.

3

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 X 3/4 C

1шт.

4

7704141

EXTENSION

3/8-16 HTLN GR/B

1шт.

5

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 C

2шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

86516876

COVER

1/2-13 H

2шт.

9

700123777

GUARD

WINDGUARD WA

1шт.

10

758441

SPRING

- EXTENSION

1шт.

11

700123742

SENDER UNIT

PICKUP ASSEMBLY

1шт.

12

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

4шт.

13

705533

WASHER

3/8 HARDENED PLAIN WASHER

4шт.

14

705038

CONTROL VALVE

3/8"

4шт.

15

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.
