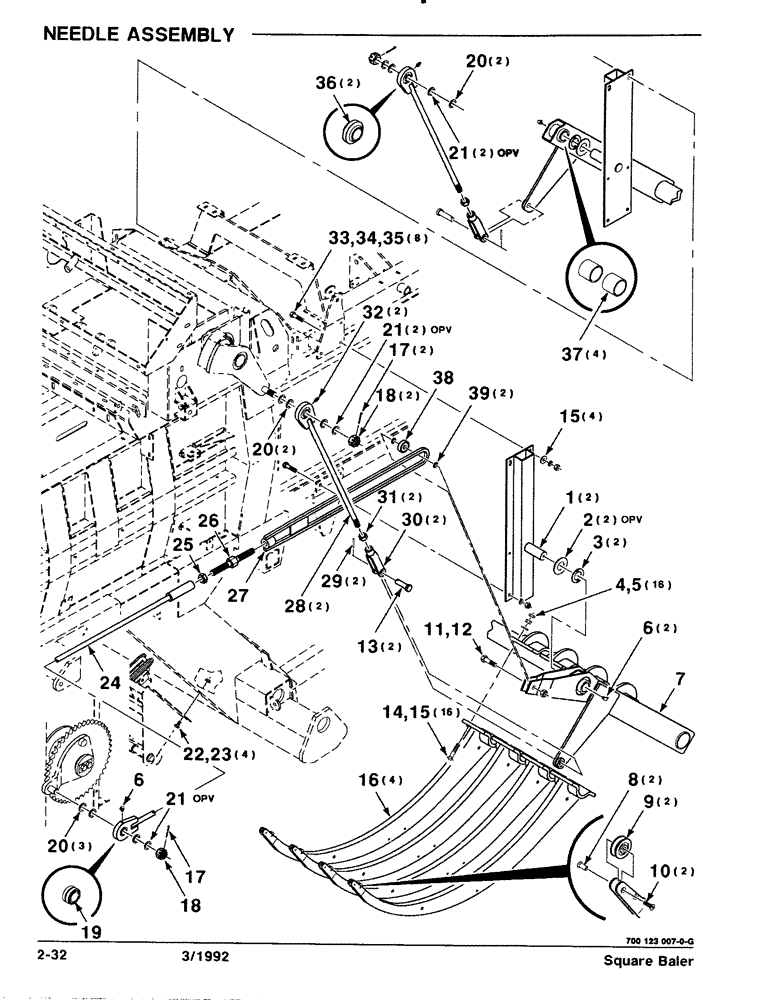

Запчасти Case IH 8570 (2-32) - NEEDLE ASSEMBLY Driveline

1

700123220

PIVOT

WA

2шт.

2

740522

WASHER

1-1/2 X 10 GAUGE WRMB

2шт.

3

700710540

WASHER

- REPAIR

2шт.

4

700710414

JAM NUT

1/2-13 HJN GR8 BF

16шт.

5

700703458

NUT

1/2-13 H GR8 NP

16шт.

6

77115

FITTING

1/8-27 X 90 DEGREE ZERK

3шт.

7

700123288

SUPPORT

WA (Includes Item 37)

1шт.

8

866566

FASTENER,#10 - 32 x 9/16"

(Special)

2шт.

9

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

BEARING

2шт.

10

8701476

HEX SOC SCREW,Flat Hd, CSK, #10 - 32 x 1/2"

#10-32 X 1/2 HSFCHCS (Special)

2шт.

11

701771

SUPPORT

5/8-11 x 2-1/4 C

1шт.

12

7774482

NUT

5/8-11 HTLN GR/C

1шт.

13

A35113

PIN

3/4 x 2 CLEVIS PIN

2шт.

14

700710413

BOLT,Round, 1/2" - 13 x 2 1/2", Grade 8, BLK

1/2-13 x 2-1/2 RHSNB GR8 NP

16шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

20шт.

16

700123233

NEEDLE

(Includes Items 8, 9 and 10)

4шт.

17

62786

RIVET,Rd Hd, M4 x 48, Aluminum

1/4 X 1-1/2 COTTER PIN

3шт.

18

704692

NUT

1-14 SHN GR 2

3шт.

19

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

- CYLINDER

1шт.

20

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 X 10 GAUGE NRMB

7шт.

21

52258

BUSHING

1 X 14 GAUGE NRMB

5шт.

22

7703424

FLANGE BOLT,Hex, Serr, 3/8" - 16 x 1"

3/8-16 X 1 HFSS

4шт.

23

704247

NUT

3/8-16 HFSLN GR/F

4шт.

24

700123228

ROD

WA (Includes Item 19)

1шт.

25

7774391

JAM NUT

7/8-14 HJN GR2

1шт.

26

6530604

ROD

- ADJUSTING

1шт.

27

700113098

STRAP

WA - SAFETY

1шт.

28

700123225

ROD

- CONNECTING (Includes Item 36)

2шт.

29

19329R1

LOCK PIN,5/32" x 1 1/2", Slotted

5/32 X 1-1/2 SLOTTED SPRING PIN

2шт.

30

66332

FLOOR

2шт.

31

704569

NUT

3/4-10 HJN GR2

2шт.

32

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 ZERK

2шт.

33

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 C

8шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

35

704031

NUT

1/2-13 H

8шт.

36

700123203

BEARING, ROLLER, CYL,1" ID x 2" OD x 4.5 mm

BEARING - CYLINDRICAL

2шт.

37

700123261

BRONZE BUSHING

BUSHING - BRONZE

4шт.

38

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

BEARING

1шт.

39

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.
