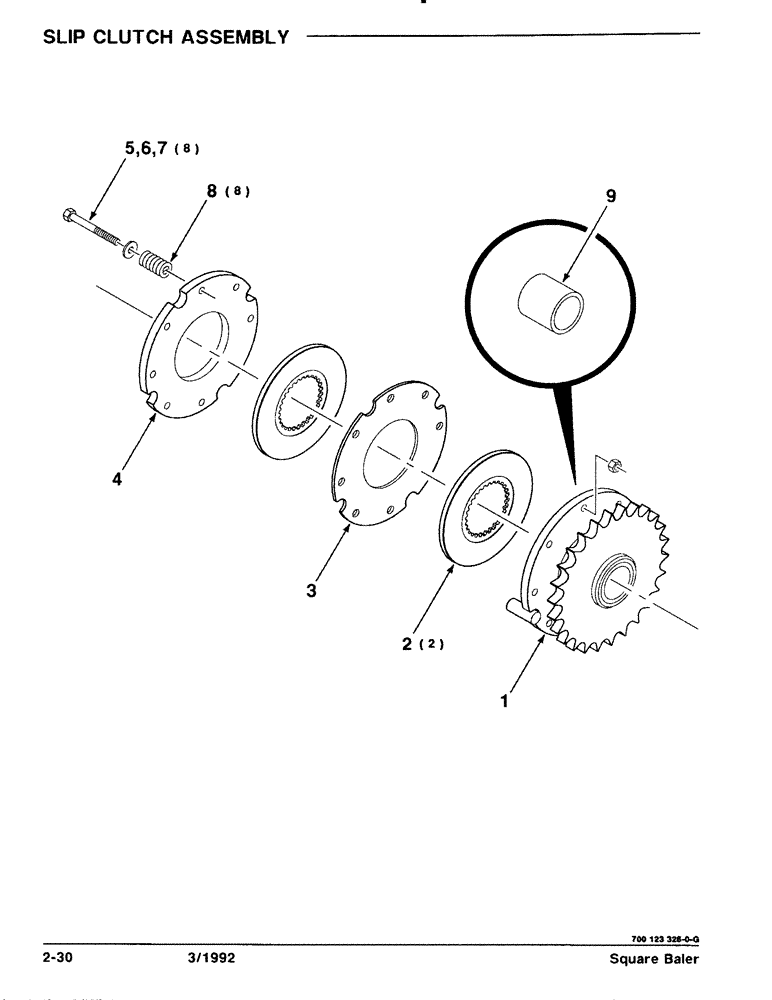

Запчасти Case IH 8570 (2-30) - SLIP CLUTCH ASSEMBLY Driveline

1

700123327

SPROCKET ASSY.

SPROCKET WA (Includes Item 9)

1шт.

2

700108820

DISC

ASSEMBLY - FRICTION

2шт.

3

700112903

CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk

PLATE - CLUTCH

1шт.

4

6522866

CLUTCH PLATE

PLATE - CLUTCH

1шт.

5

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 C

8шт.

6

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

8шт.

7

74781

NUT

3/8-16 LHSN

8шт.

8

58107

SPRING

- COMPRESSION

8шт.

9

6565030

BUSHING,50.98mm ID x 62.63mm OD x 63.69mm L

- BRONZE

1шт.
