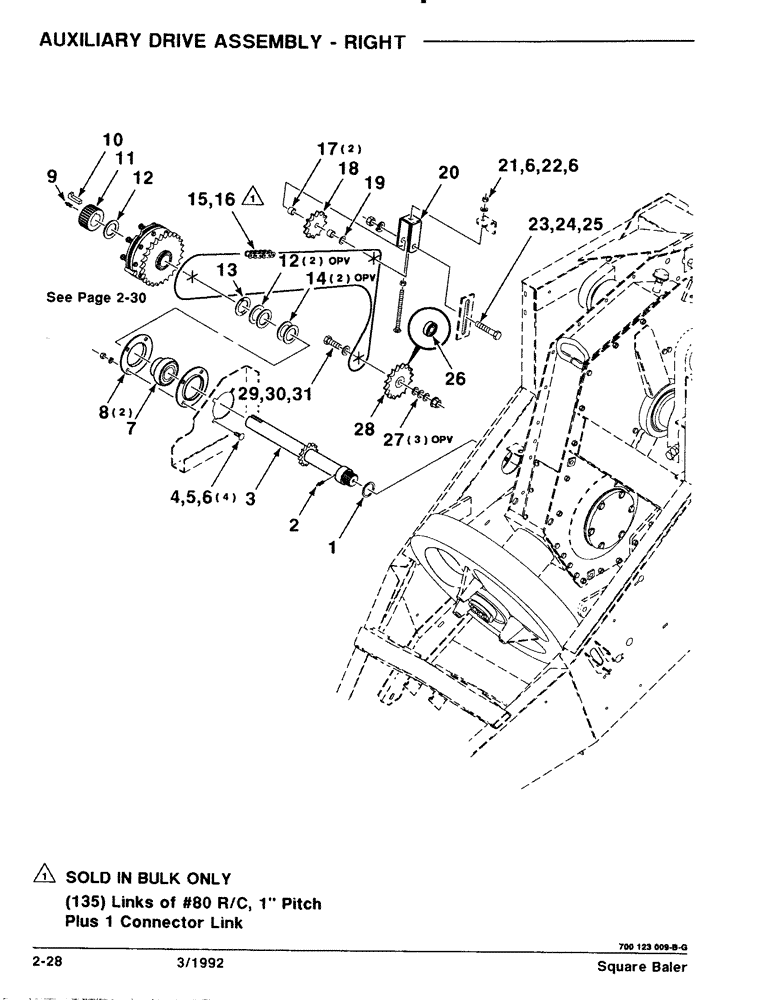

Запчасти Case IH 8570 (2-28) - AUXILIARY DRIVE ASSEMBLY, RIGHT Driveline

1

700710542

SEALING RING

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

3

700123332

SHAFT

1шт.

4

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 X 1-1/4 RHSNB

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

86516876

COVER

1/2-13 H

6шт.

7

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING

1шт.

8

714360

FLANGED BEARING

FLANGE

2шт.

9

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 ZERK

1шт.

10

700706643

KEY

1/2 X 1/2 X 1-3/4 GIB KEY

1шт.

11

700112925

HUB

- SPLINED, 28 TOOTH

1шт.

12

740407

BRUSH, COMMUTATOR

2 X 10 GAUGE NRMB

3шт.

13

8052177

WASHER

1шт.

14

7852866

BUSHING

2X 18 GAUGE NRMB

2шт.

15

654437R91

CHAIN (AG)

CHAIN - ROLLER, #80 (10 FOOT BULK)

1шт.

16

654438R91

LINK

- CONNECTOR, #80 R/C

1шт.

17

6823512

SPACER

2шт.

18

51200277

SPROCKET ASSY.

SPROCKET - IDLER

1шт.

19

52183

BUSHING

3/4 X 18 GAUGE NRMB

1шт.

20

700123330

CLEVIS

1шт.

21

7770878

BOLT,Sq Nk, 1/2" - 13 x 7", Gr 5, Full Thd

1/2-13 X 7 FT RHSNB

1шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

23

703488

SCREW

3/4-10 X 4 C

1шт.

24

705111

LOCK WASHER,3/4"

3/4"

1шт.

25

704528

NUT,3/4"-10, G5

3/4-10 H

1шт.

26

712604

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

1шт.

27

52761

BUSHING

3/4 X 14 GAUGE NRMB

3шт.

28

700123336

SPROCKET ASSY.

SPROCKET ASM (Includes Item 26)

1шт.

29

7701329

SPECIAL BOLT,Hex 3/4" - 10 x 2 1/4", Gr 5

3/4-10 X 2-1/4 C

1шт.

30

705566

WASHER

3/4 HARDENED PLAIN WASHER

1шт.

31

700710072

LOCK NUT

3/4-10 HTLN

1шт.
