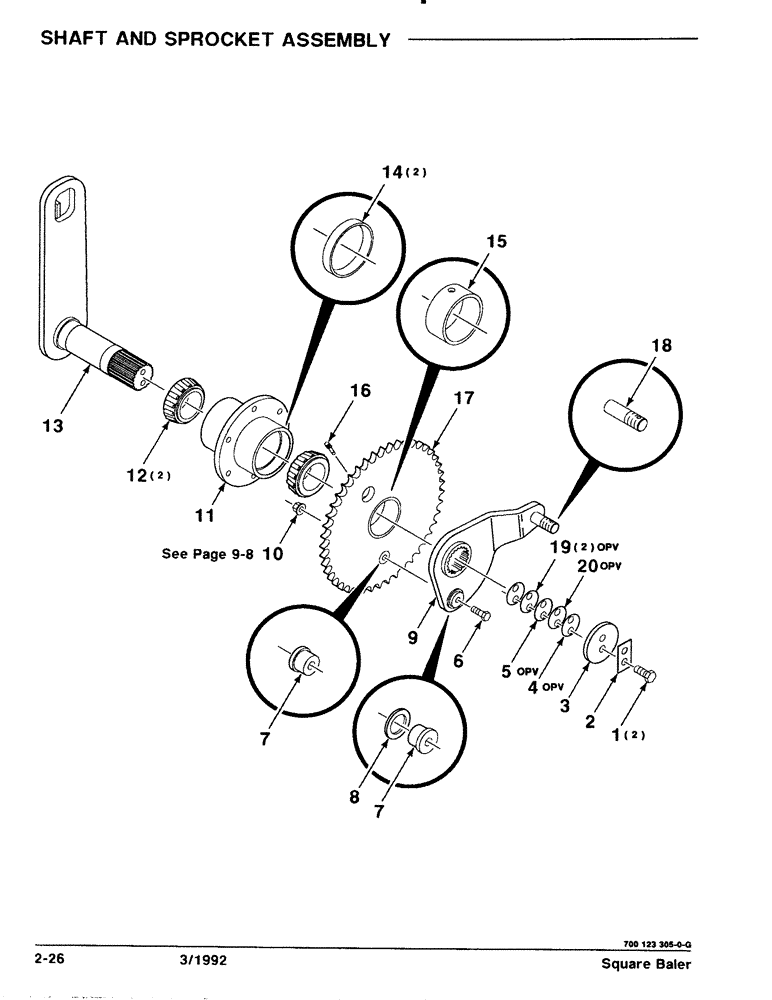

Запчасти Case IH 8570 (2-26) - SHAFT AND SPROCKET ASSEMBLY Driveline

1

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 C

2шт.

2

700113045

LOCKING PLATE

TAB - LOCK

1шт.

3

700113044

RETAINING PLATE

CAP - RETAINER

1шт.

4

700707993

SHIM

SHIN - .020

1шт.

5

700706060

SHIM

- .005

1шт.

6

7773070

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2-13 X 2-3/4 C GRD 8

1шт.

7

6526081

BUSHING

SLEEVE - SHEAR BOLT

2шт.

8

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

1шт.

9

700123316

HUB

(INCLUDES ITEMS 7,8 & 18)

1шт.

10

704742

ROD

1/2-13 HFTLN GR/G

1шт.

11

700123311

HUB

ASSEMBLY (INCLUDES ITEM 14)

1шт.

12

700710545

ROLLER BEARING,68.26mm ID x 22mm W

CONE - BEARING

2шт.

13

700123306

ARM

WA

1шт.

14

700710544

BEARING CUP,110 mm OD

CUP - BEARING

2шт.

15

700123389

BRONZE BUSHING

BUSHING - BRONZE

1шт.

16

77388

LUBE NIPPLE,90 Degree, 1/8" NPT x 1.81" lg

1/8-27 X 90 DEGREE ZERK

1шт.

17

700123320

SPROCKET ASSY.

SPROCKET (INCLUDES ITEMS 7 & 15)

1шт.

18

700123319

SHAFT

1шт.

19

700706059

SHIM

- .003

2шт.

20

700706061

SHIM

- .010

1шт.
