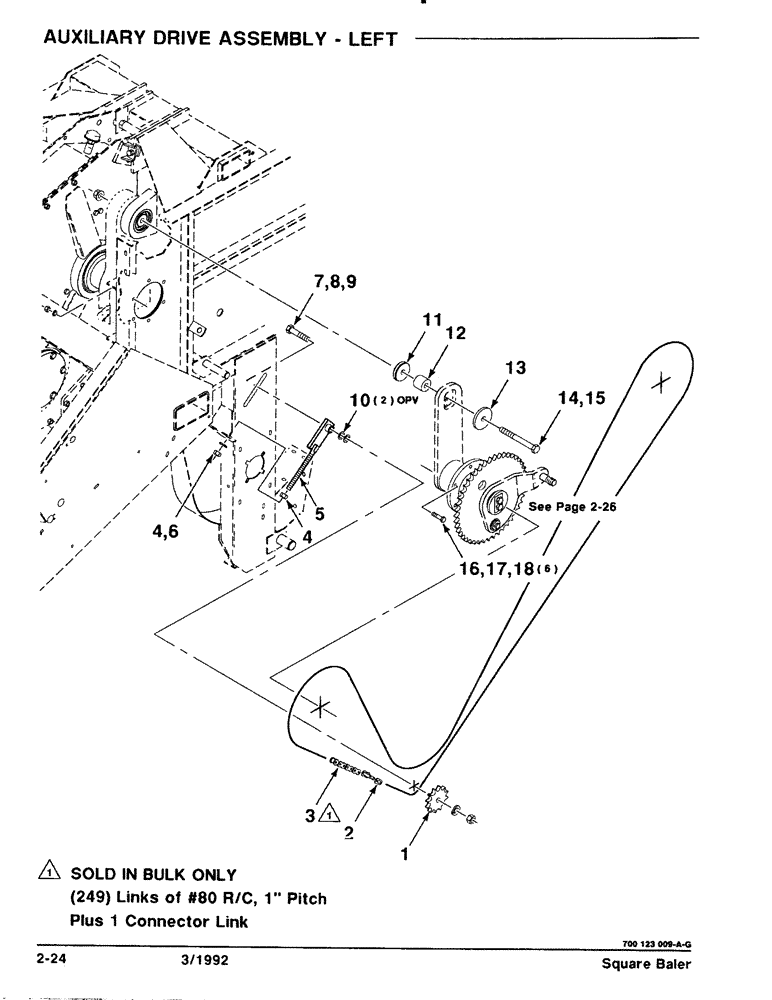

Запчасти Case IH 8570 (2-24) - AUXILIARY DRIVE ASSEMBLY, LEFT Driveline

1

51200277

SPROCKET ASSY.

SPROCKET - IDLER

1шт.

2

654438R91

LINK

- CONNECTOR, #80 R/C

1шт.

3

654437R91

CHAIN (AG)

CAHIN - ROLLER, #80 (10 FOOT BULK)

1шт.

4

704130

NUT,5/8"-11, G5

5/8-11 H

2шт.

5

700123337

SPECIAL BOLT

DRAW BOLT WA

1шт.

6

705582

WASHER

5/8 Hardened Plain Washer

1шт.

7

7772122

BOLT

3/4-10 X 3-1/2 C

1шт.

8

705111

LOCK WASHER,3/4"

3/4"

1шт.

9

704528

NUT,3/4"-10, G5

3/4-10 H

1шт.

10

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

11

700123122

WASHER

- SPECIAL

1шт.

12

700123335

BUSHING

1шт.

13

6579106

LARGE PLATE

CAP - PLATE

1шт.

14

7883044

BOLT,Hex 3/4" - 10 x 7", Gr 5

3/4-10 X 7 C

1шт.

15

700710072

LOCK NUT

3/4-10 HTLN, GRADE C

1шт.

16

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 C

6шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

18

704031

NUT

1/2-13 H

6шт.
