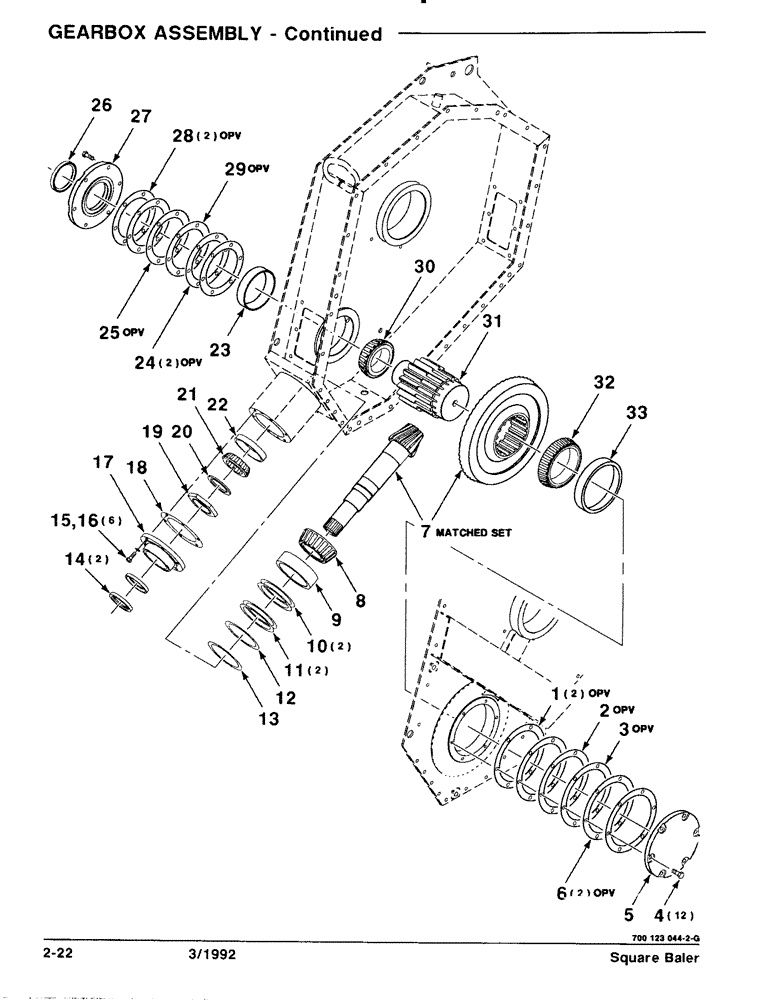

Запчасти Case IH 8570 (2-22) - GEARBOX ASSEMBLY, CONTINUED Driveline

1

700710360

SHIM

- LEFT, 0.51 / .020

2шт.

2

700710359

SHIM

- LEFT, 0.25 / 0.10

1шт.

3

700710358

SHIM

- LEFT, 0.13 / .005

1шт.

4

7703275

BOLT,M12 x 1.75 x 25mm, Cl 8.8

M12 X 1.75 X 25 C

12шт.

5

700123102

CAP

- LEFT

1шт.

6

700710357

SHIM

- LEFT, 0.08 / .003

2шт.

7

700710353

GEAR-SET

RING GEAR AND PINION

1шт.

8

700710374

CONE

- BEARING

1шт.

9

700710373

CUP

- BEARING

1шт.

10

700710389

SHIM

- PINION, INPUT 0.51 / .020

2шт.

11

700710386

SHIM

- PINION, INPUT 0.08 / .003

2шт.

12

700710387

SHIM

- PINION, INPUT 0.13 / .005

1шт.

13

700710388

SHIM

- PINION, INPUT 0.25 / .010

1шт.

14

700710382

SEAL

- OIL

2шт.

15

700708350

SCREW

M10 X 1.5 X 30 C

6шт.

16

700708367

WASHER

10 L

6шт.

17

700123101

CAP

- FRONT

1шт.

18

700710371

GASKET

- FRONT CAP

1шт.

19

700710410

NUT

- STAKE

1шт.

20

700710383

WASHER

- SPECIAL

1шт.

21

700710379

ROLLER BEARING,69.85 mm ID x 25.4 mm

CONE - BEARING

1шт.

22

700710378

BEARING, CUP

CUP - BEARING

1шт.

23

700710375

CUP

- BEARING

1шт.

24

700710364

SHIM

- RIGHT 0.51 / .020

2шт.

25

700710362

SHIM

- RIGHT 0.13 / .005

1шт.

26

700701720

SEAL

- OIL

1шт.

27

700123103

CAP

- RIGHT

1шт.

28

700710361

SHIM

- RIGHT 0.08 / .003

2шт.

29

700710363

SHIM

SHIN - RIGHT 0.25 / .010

1шт.

30

700710377

CONE

- BEARING

1шт.

31

700710352

PINION

1шт.

32

700710380

CONE

- BEARING

1шт.

33

700710370

CUP

- BEARING

1шт.
