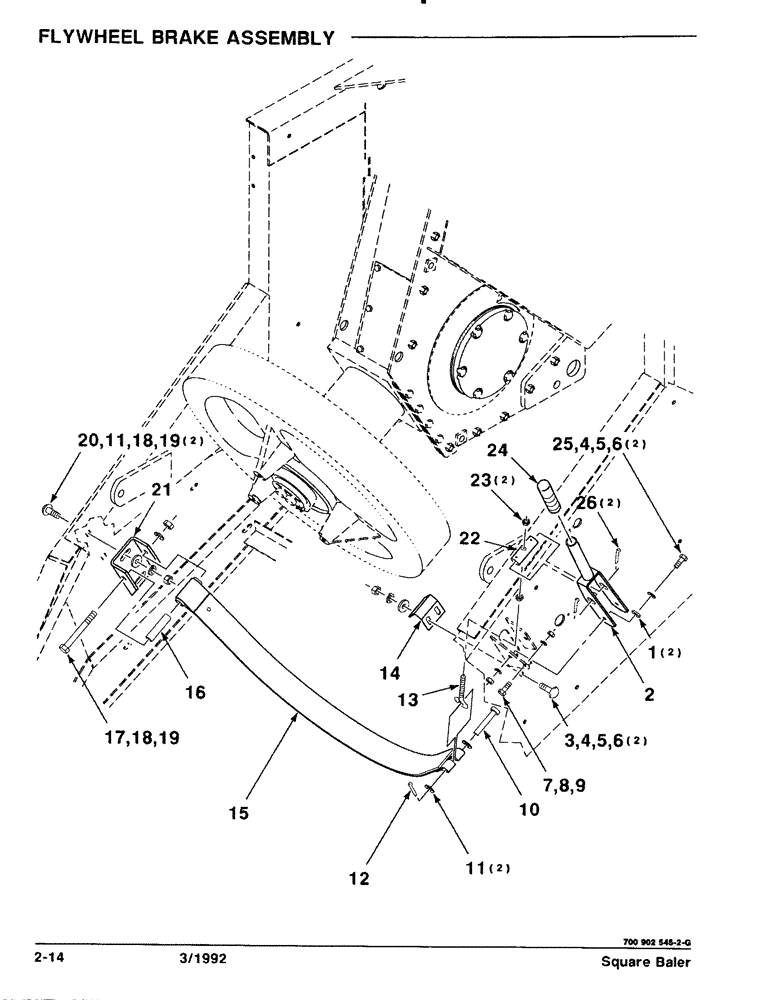

Запчасти Case IH 8570 (2-14) - FLYWHEEL BRAKE ASSEMBLIES Driveline

1

6489231

SPACER

2шт.

2

700113054

LEVER

WA - BRAKE

1шт.

3

700047

BOLT

3/8-16 X 1 RHSNB

2шт.

4

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

4шт.

5

705038

CONTROL VALVE

3/8"

4шт.

6

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

7

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

1шт.

8

705020

LOCK WASHER

5/16"

1шт.

9

704015

NUT,5/16"-18, G5

5/16-18 H

1шт.

10

439-5848

HEADED PIN,1/2" x 3", G5

1/2 X 3 CLEVIS PIN

1шт.

11

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

12

62174

PIN

5/32 X 1 COTTER PIN

1шт.

13

766667

BOLT,1/2" - 13 x 10"

1/2-13 X 10 EYEBOLT

1шт.

14

700123837

STOP

1шт.

15

700123832

BRAKE

ASSEMBLY

1шт.

16

6524003

SPACER

1шт.

17

703223

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 X 4-1/2 C

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

19

704031

NUT

1/2-13 H

3шт.

20

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 X 1-1/4 RHSNB

2шт.

21

700123838

CHANNEL

- RIGHT

1шт.

22

700113057

PIN

- TRUNNION

1шт.

23

231-1448

NUT,1/2"-13, GB

1/2-13 LHSN

2шт.

24

27342

GRIP

- HANDLE

1шт.

25

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

26

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16X 1-1/2 COTTER PIN

2шт.
