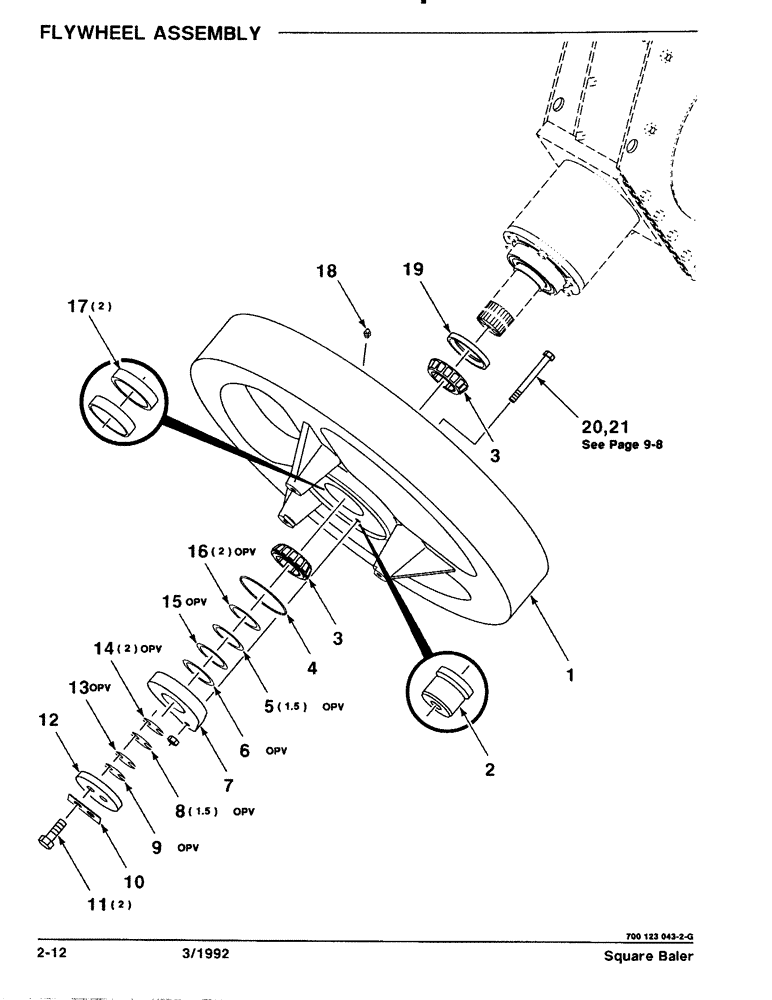

Запчасти Case IH 8570 (2-12) - FLYWHEEL ASSEMBLY Driveline

1

700123112

FLYWHEEL

ASSEMBLY

1шт.

2

6855555

SLEEVE

- SHEAR

1шт.

3

714634

CONE

BEARING - CONE

2шт.

4

700706050

O-RING

1шт.

5

700710365

SHIM

- FLYWHEEL, 0.008 / .003

1.5шт.

6

700710366

SHIM

- FLYWHEEL, 0.13 / .005

1шт.

7

700123118

HUB

- SHEAR

1шт.

8

700710394

SHIM

- FLYWHEEL CAP, 0.008 / .003

1.5шт.

9

700710395

SHIM

- FLYWHEEN CAP, 0.13 / .005

1шт.

10

700113045

LOCKING PLATE

TAB - LOCK

1шт.

11

700708355

SCREW

M16 X 2 X 40 C CLASS 10.9 NP

2шт.

12

700113044

RETAINING PLATE

CAP - RETAINER

1шт.

13

700710396

SHIM

- FLYWHEEL CAP, 0.25 / .010

1шт.

14

700710397

SHIM

- FLYWHEEL CAP, 0.51 / .020

2шт.

15

700710367

SHIM

- FLYWHEEL, 0.25 / 0.10

1шт.

16

700710369

SHIM

- FLYWHEEL, 0.51 / .020

2шт.

17

714626

CUP

- BEARING

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

19

700710382

SEAL

- OIL

1шт.

20

7701899

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 C

1шт.

21

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.
