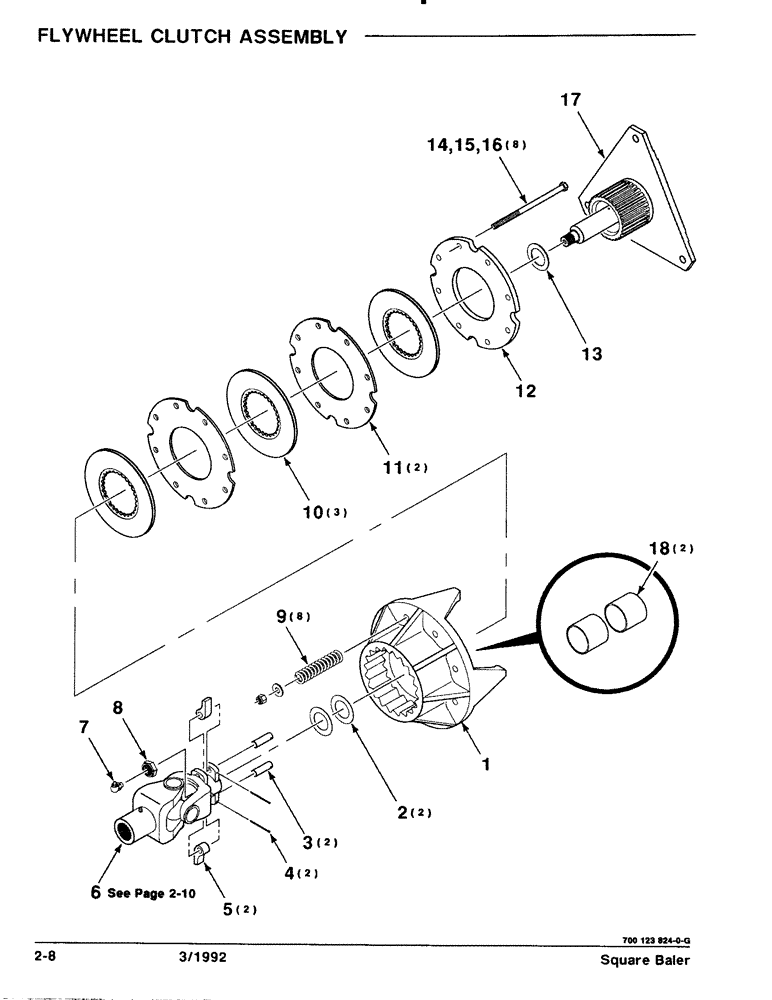

Запчасти Case IH 8570 (2-08) - FLYWHEEL CLUTCH ASSEMBLY Driveline

1

700113034

CLUTCH HOUSING

HOUSING - CLUTCH (Includer Item 18)

1шт.

2

6522932

SHIM

- CLUTCH

2шт.

3

6522916

PIN

- PAWL

2шт.

4

62133

PIN

1/8 X 1-3/4 COTTER PIN

2шт.

5

700123827

PAWL

- CLUTCH

2шт.

6

700710705

JOINT

U - JOINT ASSEMBLY

1шт.

7

77115

FITTING

1/8-27 X 90 DEGREE ZERK

1шт.

8

74476

NUT

3/4-16 LHSN

1шт.

9

858019

SPRING

- COMPRESSION

8шт.

10

700108820

DISC

ASSEMBLY - FRICTION

3шт.

11

700112903

CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk

PLATE - CLUTCH

2шт.

12

6522866

CLUTCH PLATE

PLATE - CLUTCH

1шт.

13

NLS

NO LONGER SERVICED

1-3/8 X 14 GAUGE NRMB

1шт.

14

700707998

SCREW,Hex, 3/8" - 16 x 7", Gr 5

3/8-16 X 7 B - SPECIAL

8шт.

15

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

8шт.

16

74781

NUT

3/8-16 LHSN

8шт.

17

700123825

PLATE

PILOT WA - CLUTCH

1шт.

18

7852114

BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L

- BRONZE

2шт.
