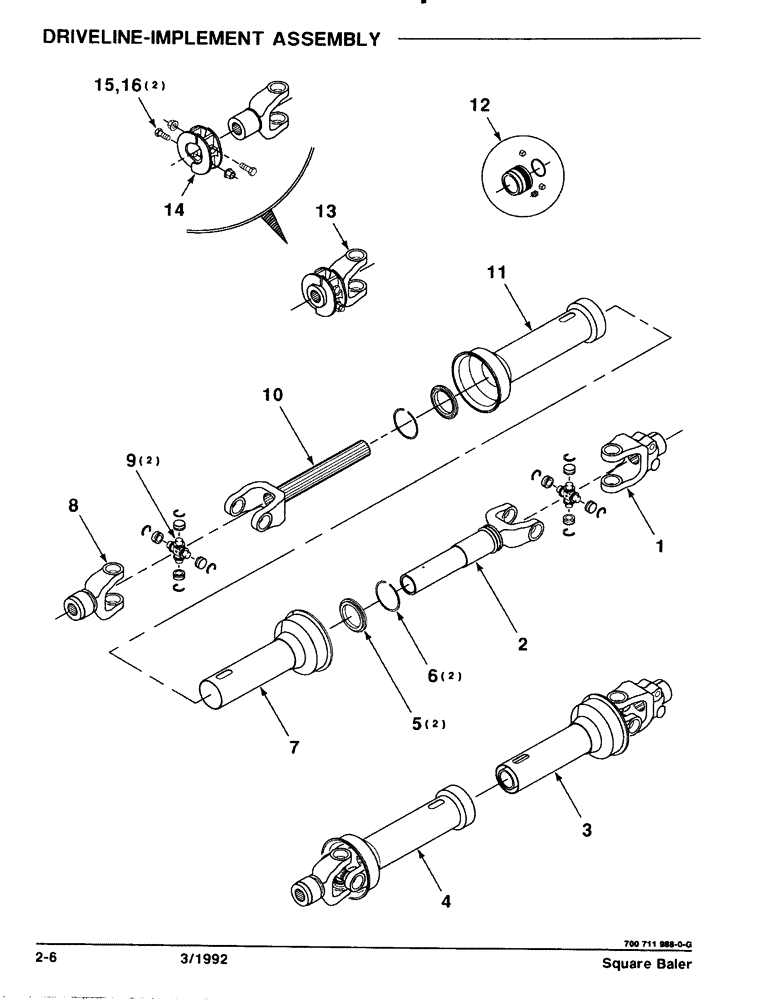

Запчасти Case IH 8570 (2-06) - DRIVELINE IMPLEMENT ASSEMBLY Driveline

1

700712517

YOKE

- SPLINED, CLAMP

1шт.

2

700712445

YOKE

AND TUBE

1шт.

3

700712443

REAR PTO ASSY

SLIP - JOINT, HALF, FEMALE

1шт.

4

700712444

PTO

SLIP - JOINT, TRACTOR HALF

1шт.

5

700706967

NYLON BEARING

BEARING - NYLON

2шт.

6

8802589

RETAINER

RINGER - RETAINER

2шт.

7

700712446

SHIELD

- INNER

1шт.

8

8802548

FORK

YOKE - QD

1шт.

9

7815053

JOINT

JOURNAL REPAIR KIT

2шт.

10

700706966

YOKE

- SHAFT

1шт.

11

700712447

SHIELD

- OUTER

1шт.

12

700710928

REPAIR KIT

S S L - YOKE, REPAIR KIT

1шт.

13

700712474

YOKE

ASSEMBLY CLAMP

1шт.

14

700712475

CLAMP

ASSEMBLY - YOKE

1шт.

15

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

2шт.

16

704858

LOCK NUT

1/2-13 HTLN GR/B

2шт.
