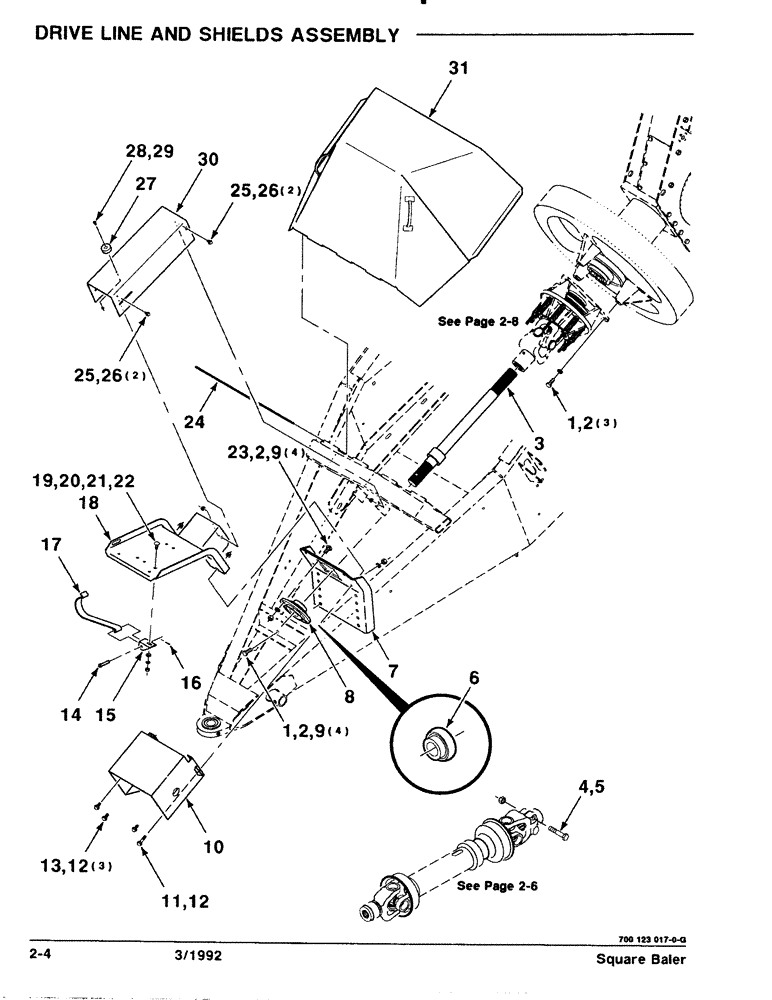

Запчасти Case IH 8570 (2-04) - DRIVE LINE AND SHIELDS ASSEMBLY Driveline

1

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

7шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

11шт.

3

700123820

SHAFT

1шт.

4

7701683

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 X 3 C

1шт.

5

7774482

NUT

5/8-11 HTLN GR/C

1шт.

6

51318

BEARING

- SPHERICAL

1шт.

7

700113022

SUPPORT

1шт.

8

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY (Includes Item 6)

1шт.

9

86516876

COVER

1/2-13 H

8шт.

10

700123829

SHIELD

1шт.

11

700711134

SCREW

3/8-16 X 1-3/4 HFS GR8

1шт.

12

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

13

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

3шт.

14

863381

CLIP,9.53mm OD x 50.8mm L

3/8 X 2 CLEVIS PINS

1шт.

15

700123830

CHANNEL

- SUPPORT

1шт.

16

62075

PIN

1/8 X 3/4 COTTER PIN

1шт.

17

700123831

SUPPORT

- STRAP

1шт.

18

700113640

SUPPORT

WA

1шт.

19

700047

BOLT

3/8-16 X 1 RHSNB

1шт.

20

705533

WASHER

3/8 HARDENED PLAIN WASHER

1шт.

21

705038

CONTROL VALVE

3/8"

1шт.

22

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

23

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-14 X 1-1/4 RHSNB

4шт.

24

65250

PIN,4.76mm OD x 571.5mm L

- HINGE

1шт.

25

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

4шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN GR/F

4шт.

27

700708648

BUMPER

1шт.

28

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

1шт.

29

700705521

RIVET

#12-24 HCLN - SPECIAL

1шт.

30

700123839

SHIELD

- PTO

1шт.

31

700123840

SHIELD

WA

1шт.
