(2-02) - HITCH AND JACK ASSEMBLY

Запчасти Case IH 8570 (2-02) - HITCH AND JACK ASSEMBLY Driveline

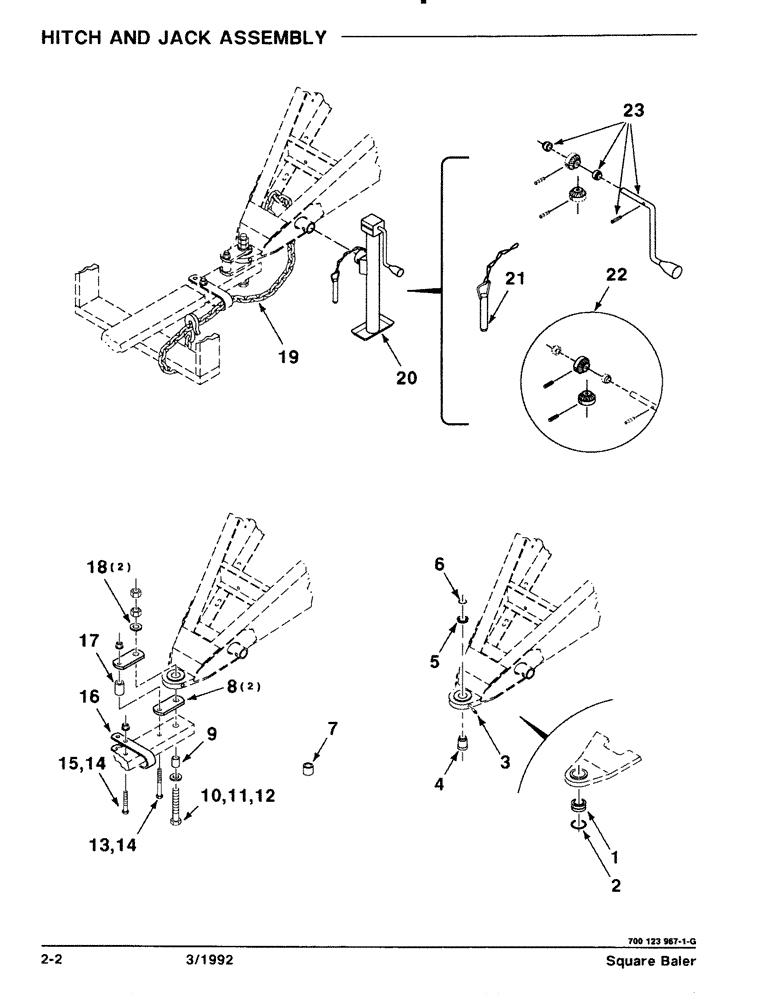

Схема запчастей Case IH 8570 - (2-02) - HITCH AND JACK ASSEMBLY Driveline
6
15
14
16
2
8
21
17
1
13
9
3
18
10
4
11
19
5
20
22
12
14
23
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7710262

BEARING

1шт.

2

700710658

OIL SEAL

RING-RETAINER

1шт.

3

7016

1/4 - 28 STRAIGHT ZERK

1шт.

4

700123698

SLEEVE

- HITCH

1шт.

5

700123490

SPACER

1шт.

6

700710639

RING

SNAP RING

1шт.

7

6649982

HUB

-IDLER

1шт.

Ref. 7 P/N 6649982 is an 1.62 inch O.D. spacer that can be used in place of Ref. 9 P/N 6469522 which is an 1.25 inch O.D. spacer

1шт.

8

6478184

LARGE PLATE

PLATE-LOWER

2шт.

9

6469522

SPACER

1шт.

Ref. 7 P/N 6649982 is an 1.62 inch O.D. spacer that can be used in place of Ref. 9 P/N 6469522 which is an 1.25 inch O.D. spacer

1шт.

10

7883234

BOLT

1/8 X 7 C

1шт.

11

70912908

NUT

1-8 H

1шт.

12

425-1416

JAM NUT,Jam, 1"-8, G5

1-8 HJN GR2

1шт.

13

703934

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 X 5-1/2 C

1шт.

14

704924

NUT

5/8-11 GTLN GR/B

2шт.

15

NLS

NO LONGER SERVICED

5/8-11 X 3-1/2 C

1шт.

16

700113646

CLEVIS

-SAFETY, CHAIN

1шт.

17

700123969

SPACER

-HITCH

1шт.

18

700709609

WASHER,1"

1 WIDE PLAIN WASHER

2шт.

19

700710846

CHAIN (AG)

SAFETY-CHAIN

1шт.

20

700709385

JACK

1шт.

21

700709409

LINK CHAIN

PIN AND CAHIN ASSEMBLY

1шт.

22

700702059

KIT

GEAR SET

1шт.

23

700702060

CRANKED HANDLE

CRANK KIT

1шт.
