(9-10) - BALE CHUTE KIT, BALE CHUTE KIT, HK42501, COMPLETE

Запчасти Case IH 8570 (9-10) - BALE CHUTE KIT, BALE CHUTE KIT, HK42501, COMPLETE Decals & Attachments

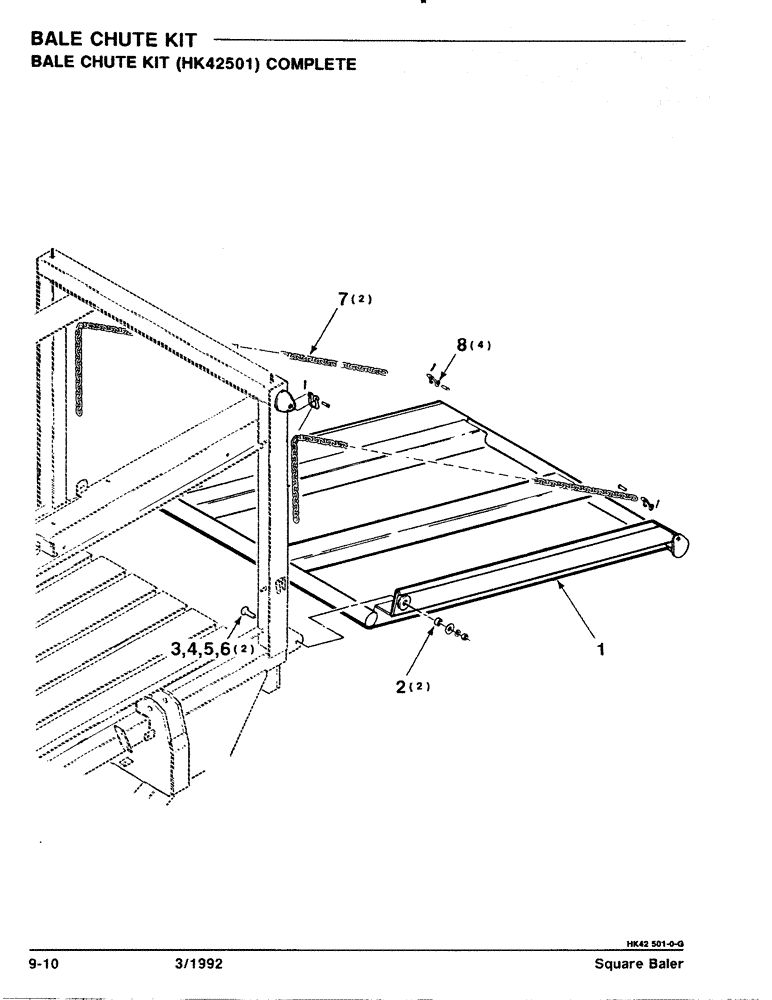

Схема запчастей Case IH 8570 - (9-10) - BALE CHUTE KIT, BALE CHUTE KIT, HK42501, COMPLETE Decals & Attachments
7
8
2
5
3
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700123475

CHUTE (DOWNWARD)

FRAME WA - CHUTE

1шт.

2

6529705

BUSHING

2шт.

3

7870165

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

2шт.

4

700709606

WASHER,5/8"

5/8 WIDE PLAIN WASHER

2шт.

5

705061

PLUG

5/8"

2шт.

6

704130

NUT,5/8"-11, G5

5/8-11 H

2шт.

7

700123484

CHAIN (AG)

CHAIN

2шт.

8

766113

CLEVIS

(Includes Pins)

4шт.
