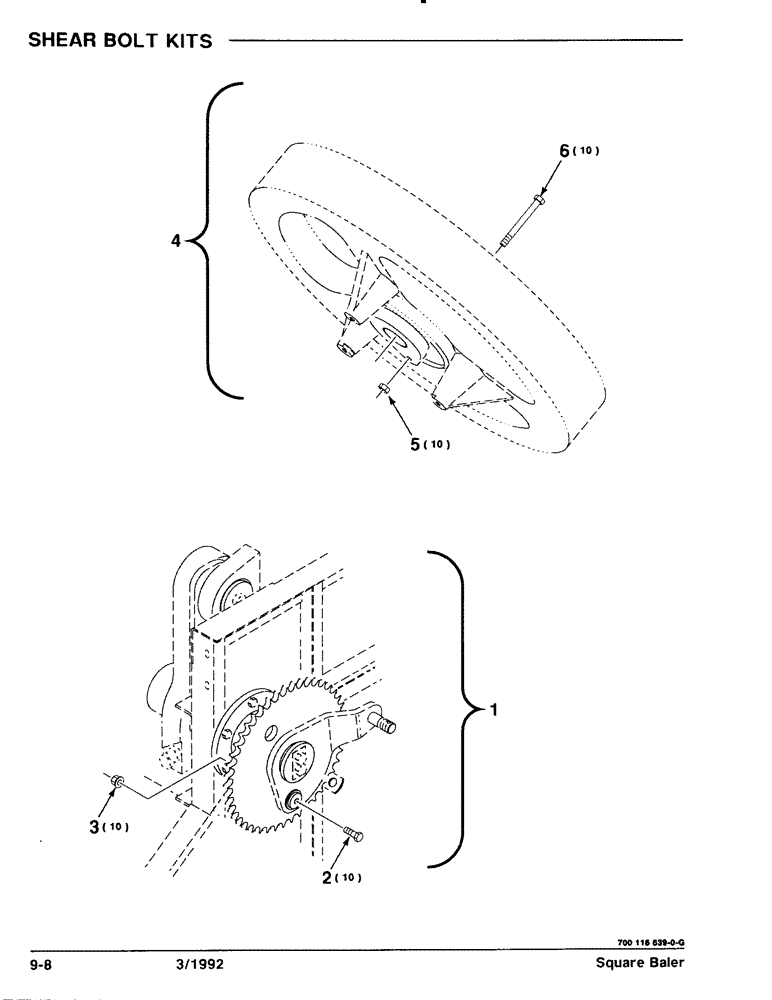

Запчасти Case IH 8570 (9-08) - SHEAR BOLT KITS Decals & Attachments

1

700114059

KIT

SACK OF BOLTS (Includes Items 2 & 3) ( replaced 700116639 )

1шт.

2

7773070

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2-13 x 2-3/4 C GRD 8

10шт.

3

704742

ROD

1/2-13 HFTLN GR/G

10шт.

4

700116639

KIT, SHEARBOLT, PAK

SACK OF BOLTS (Includes Items 4 & 6) ( replaced 700114059)

1шт.

5

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

6

7701899

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 C

10шт.
