(09-04) - DECALS AND LOCATION DIAGRAM (LEFT) (S.N. CFH0046501 THRU CFH0046949)

Запчасти Case IH 8555 (09-04) - DECALS AND LOCATION DIAGRAM (LEFT) (S.N. CFH0046501 THRU CFH0046949) Decals & Attachments

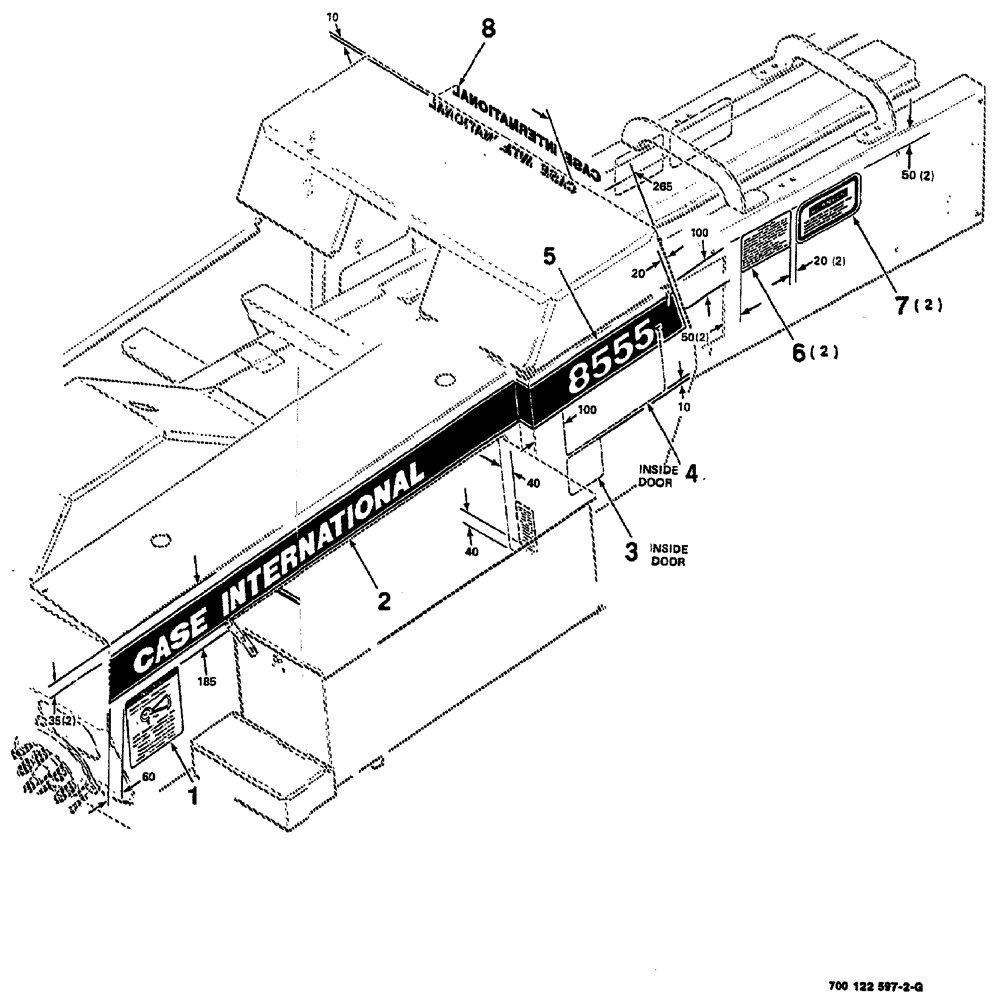

Схема запчастей Case IH 8555 - (09-04) - DECALS AND LOCATION DIAGRAM (LEFT) (S.N. CFH0046501 THRU CFH0046949) Decals & Attachments
4
1
8
6
2
3
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700710642

DECAL

notice, knotter

1шт.

2

700710016

DECAL

8555 combo, left

1шт.

3

700704658

DECAL

needle timing

1шт.

4

700703441

DECAL

operation

1шт.

5

700710017

DECAL

combo, left-rear

1шт.

6

700703905

DECAL

operation

2шт.

7

700700036

DECAL

danger

2шт.

8

1973423C1

DECAL

case international

1шт.
