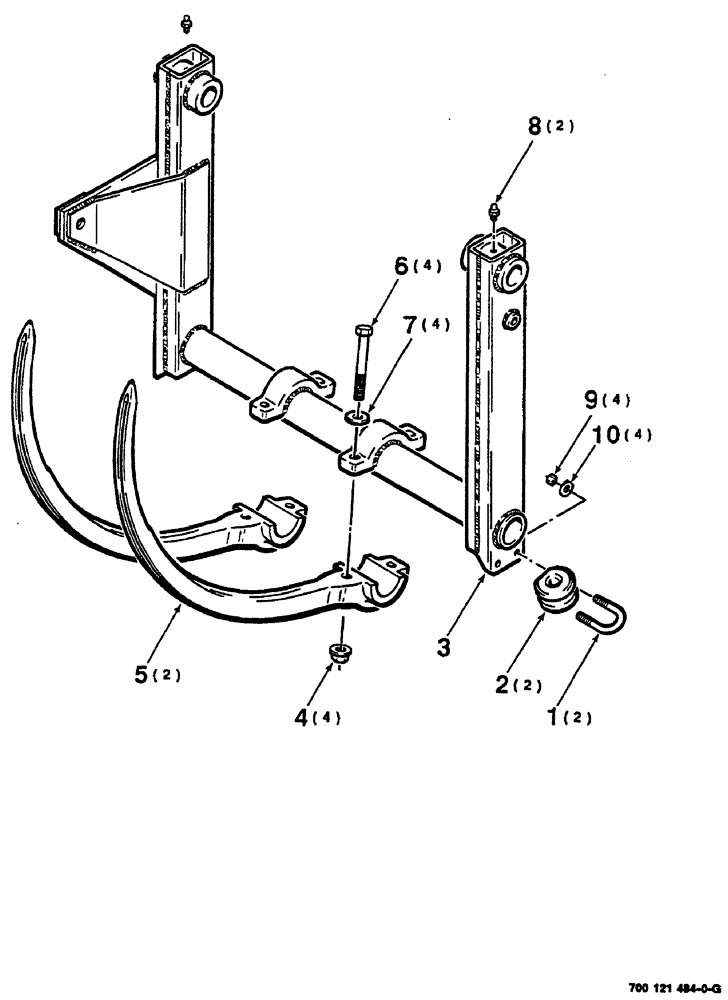

Запчасти Case IH 8555 (06-18) - SHUTTLE FRAME AND NEEDLE ASSEMBLY (14) - BALE CHAMBER

1

51200861

U-BOLT

2шт.

2

700711131

GUIDE

2шт.

3

700121485

FRAME

shuttle, WA

1шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

lock hex flange top, 1/2-13, GR/G

4шт.

5

700111996

NEEDLE

twine

2шт.

6

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

4шт.

7

51200254

WASHER

special

4шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

9

230-4215

NUT,5/16"-18, GA

Center

4шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.
