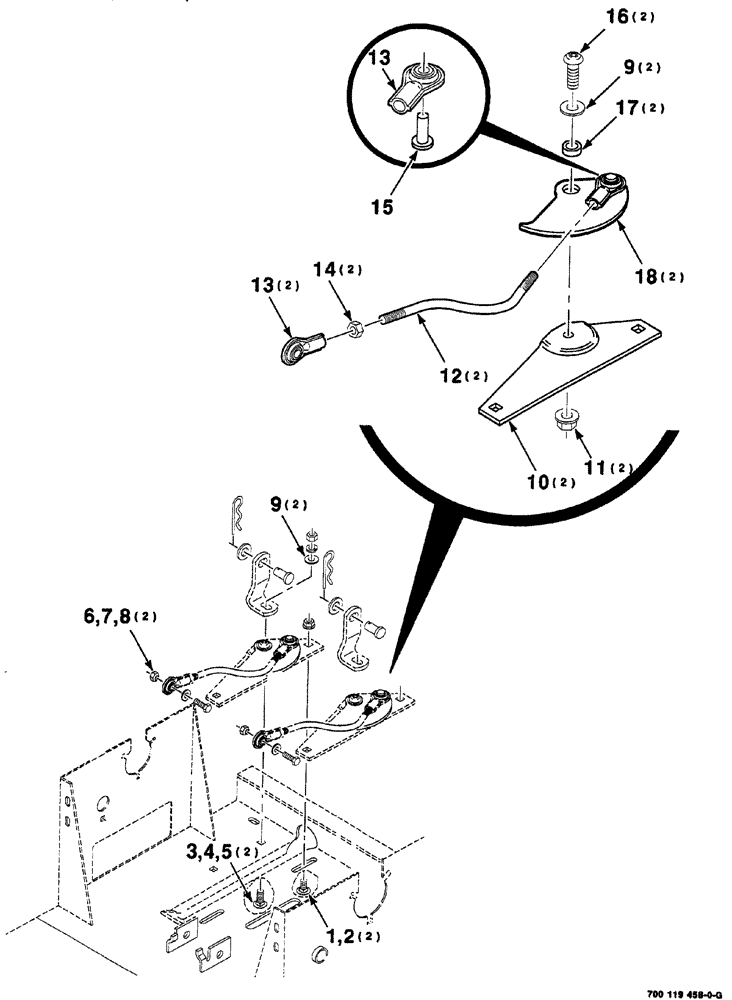

Запчасти Case IH 8555 (06-14) - FINGER (TWINE) ASSEMBLY (14) - BALE CHAMBER

1

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

2

231-5146

FLANGE NUT,3/8"-16

2шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

8

230-4115

LOCK NUT,5/16"-18, GA

lock hex top, 5/16-18, GR/B

2шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened, plain, 3/8

4шт.

10

700119459

MOUNTING PARTS

FINGER

2шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

lock hex flange top, 3/8-16, GR/G

2шт.

12

700119462

ROD

ROD

2шт.

13

700703692

ADJUSTMENT ROD

END rod

3шт.

Part of Finger Assembly P/N 700120654

1шт.

14

425-115

NUT,5/16"-24, G5

2шт.

15

700709157

RIVET

flat, 5/16 x 3/4

1шт.

Part of Finger Assembly P/N 700120654

1шт.

16

7884414

CAPSCREW,Button Hd, 3/8" - 16 x 1", Gr 8

cap hex socket head, 3/8-16

2шт.

17

6553614

SPACER

2шт.

18

700120654

FINGER

ASSEMBLY twine, Includes: Ref. 13 and 15

2шт.
