Запчасти Case IH 8555 (06-06) - KNOTTER AND CAM GEAR ASSEMBLY (RASSPE) (14) - BALE CHAMBER

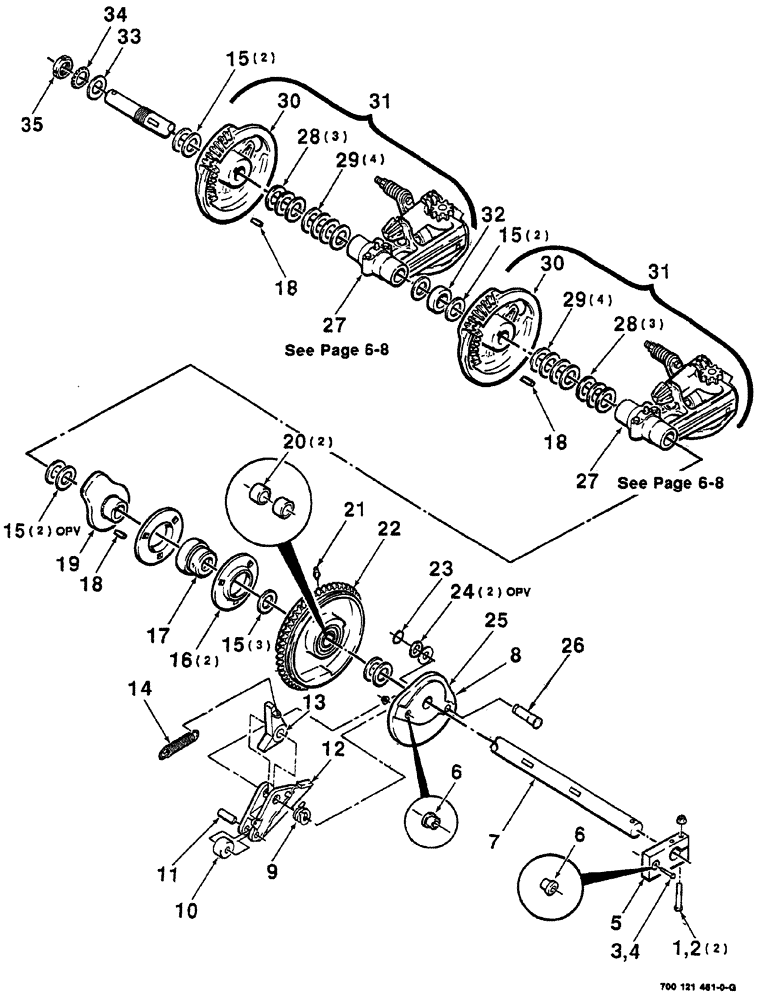

Схема запчастей Case IH 8555 - (06-06) - KNOTTER AND CAM GEAR ASSEMBLY (RASSPE) (14) - BALE CHAMBER
21
5
25
6
31
4
24
2
28
9
10
34
14
26
28
22
3
7
27
12
20
30
31
16
35
19
29
30
13
8
15
1
18
32
27
33
18
15
11
23
6
18
15
15
29
17

Артикул

Название

Примечание

Количество

1

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

2

231-4116

NUT,3/8"-16, GB

lock hex top, 3/8-16, GR/B

2шт.

3

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

4

1703354

NUT

lock hex flange top, 1/4-20, GR/G

1шт.

5

700121462

ARM

drive, shear, Includes: Ref. 6

1шт.

6

700121463

SLEEVE

shear

2шт.

Part of Cam Assembly P/N 700121466

1шт.

7

700121464

SHAFT

knotter drive

1шт.

8

700121465

LATCH

ASSEMBLY clutch, Includes: Ref. 9, 12 - 14 and 23 - 25

1шт.

9

700709844

SPRING

torsion

1шт.

Part of Latch Assembly P/N 700121465

1шт.

10

6853634

ROLLER

1шт.

11

20138R1

PIN

dowel

1шт.

12

700121469

STOP

CLUTCH dog

1шт.

Part of Latch Assembly P/N 700121465

1шт.

13

700120978

PAWL

clutch

1шт.

Part of Latch Assembly P/N 700121465

1шт.

14

700709843

SPRING

extension

1шт.

Part of Latch Assembly P/N 700121465

1шт.

15

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

narrow rim machinery bushing, 1-3/8 x 18 guage

9шт.

16

617863R1

FLANGED BEARING

bearing

2шт.

17

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

spherical

1шт.

18

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

3шт.

19

700121470

CAM

knotter, WA

1шт.

20

7852114

BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L

2шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

700120976

SPROCKET ASSY.

ASSEMBLY clutch

1шт.

23

700709842

RING

retaining, external

1шт.

Part of Latch Assembly P/N 700121465

1шт.

24

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

narrow rim machinery, 5/8 x 18 guage

2шт.

Part of Latch Assembly P/N 700121465

1шт.

25

700121466

CAM

ASSEMBLY clutch, Includes: Ref. 6 and 26

1шт.

Part of Latch Assembly P/N 700121465

1шт.

26

700121468

SHAFT

clutch

1шт.

Part of Cam Assembly P/N 700121466

1шт.

27

700709740

KNOTTER

2шт.

28

800243

SHIM

.010

6шт.

Use 800243 prior to ordering 700711935.

1шт.

700711935

SHIM

.010

6шт.

Use 800243 prior to ordering 700711935.

1шт.

29

800250

SHIM

.005

8шт.

Use 800250 prior to ordering 700711936

1шт.

700711936

SHIM

.005

8шт.

Use 800250 prior to ordering 700711936

1шт.

30

700709742

CAM

gear

2шт.

31

700709845

KNOTTER

ASSEMBLY

2шт.

32

6575302

HUB

1шт.

33

700709739

WASHER

key

1шт.

34

807693

LOCK WASHER

lock

1шт.

35

CAS807685

NUT

lock

1шт.

Выбрано товаров: 50
