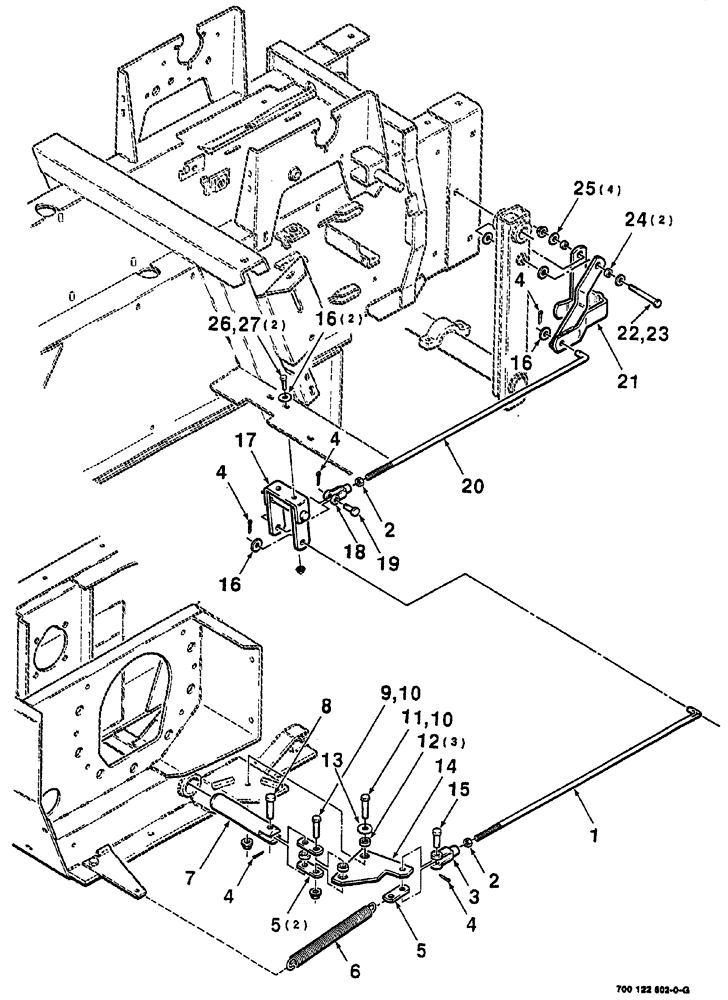

Запчасти Case IH 8555 (05-12) - SAFETY STOP (13) - FEEDER

1

700121477

ROD

safety needle, front

1шт.

2

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

3

51200163

CLEVIS

1шт.

4

432-816

COTTER PIN,1/8" x 1"

5шт.

5

700108455

LINK

stop

3шт.

6

758706

COIL SPRING

extension

1шт.

7

700108488

SHAFT

plunger, stop

1шт.

8

27-8221

CLEVIS PIN,1/2" x 2.218"

1/2 x 2

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

lock hex flange top, 1/2-13, GR/G

2шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

12

700708272

BUSHING

3шт.

13

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened, plain, 1/2

1шт.

14

700108489

PLATE

stop

1шт.

15

427-8150

CLEVIS PIN,1/2" x 1 1/2"

clevis, 1/2 x 1-1/2

1шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened, plain, 3/8

4шт.

17

700121473

ARM ASSY.

BELLCRANK, WA

1шт.

18

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

19

063586

CLEVIS PIN

3/8 x 1-1/8

1шт.

20

700121082

ROD

safety needle, rear

1шт.

21

700121075

CATCH

plunger stop, WA

1шт.

22

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

hex cap, 3/8-16 x 3-1/2

1шт.

23

232-5316

FLANGE NUT,Flg, 3/8"-16

lock hex flange top, 3/8-16, GR/G

1шт.

24

6553614

SPACER

2шт.

25

495-21044

WASHER,3/8"

4шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.
