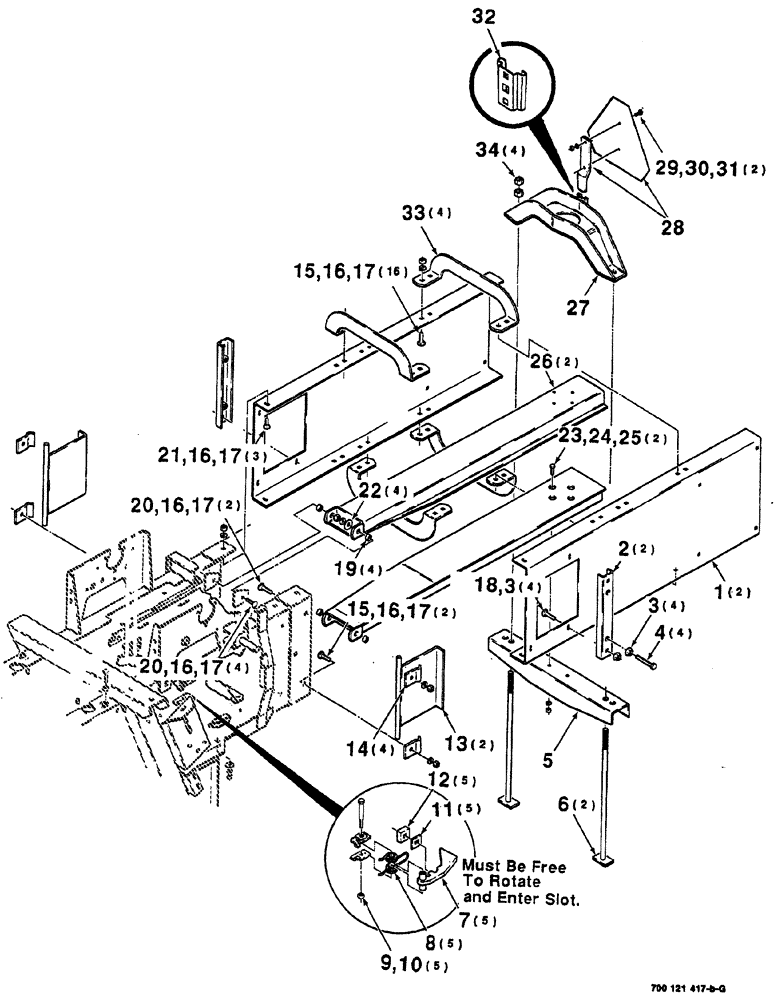

Запчасти Case IH 8555 (05-10) - BALE CHAMBER ASSEMBLY (REAR) (13) - FEEDER

1

700108393

CHANNEL

chamber, side

2шт.

2

700108424

SUPPORT

WA

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

4

113-420

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

4шт.

5

6552558

CHANNEL

cross, lower

1шт.

6

6560601

ROD

tension, WA

2шт.

7

700117281

DRIVE DOG

hay, WA

5шт.

8

700707863

SPRING

torsion

5шт.

9

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW hex cap, 1/2-13 x 4

5шт.

10

230-4118

LOCK NUT,1/2"-13, GA

lock hex top, 1/2-13, GR/B

5шт.

11

700108418

WASHER

special

5шт.

12

700703778

BUMPER

5шт.

13

700108394

DOOR ASSY.

WA side

2шт.

14

700108422

CLIP

door

4шт.

15

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

18шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

27шт.

17

425-108

NUT,1/2" - 13, Gr 5

27шт.

18

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

round head square neck, 1/2-13 x 1-3/4

4шт.

19

A28893

BUSHING

SPACER

4шт.

20

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

6шт.

21

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT round head square neck, 1/2-13 x 1

3шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened, plain, 1/2

4шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

700108428

RAIL

WA

2шт.

27

700108433

SUPPORT

WA

1шт.

28

A59450

WARNING SIGN

KIT, SMV

1шт.

29

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

30

492-11010

LOCK WASHER,#10

2шт.

31

225-14110

NUT,#10-24

2шт.

32

A59457

BRACKET

SUPPORT lamp

1шт.

33

700108401

SUPPORT

4шт.

34

425-1010

NUT,5/8"-11, G5

4шт.
