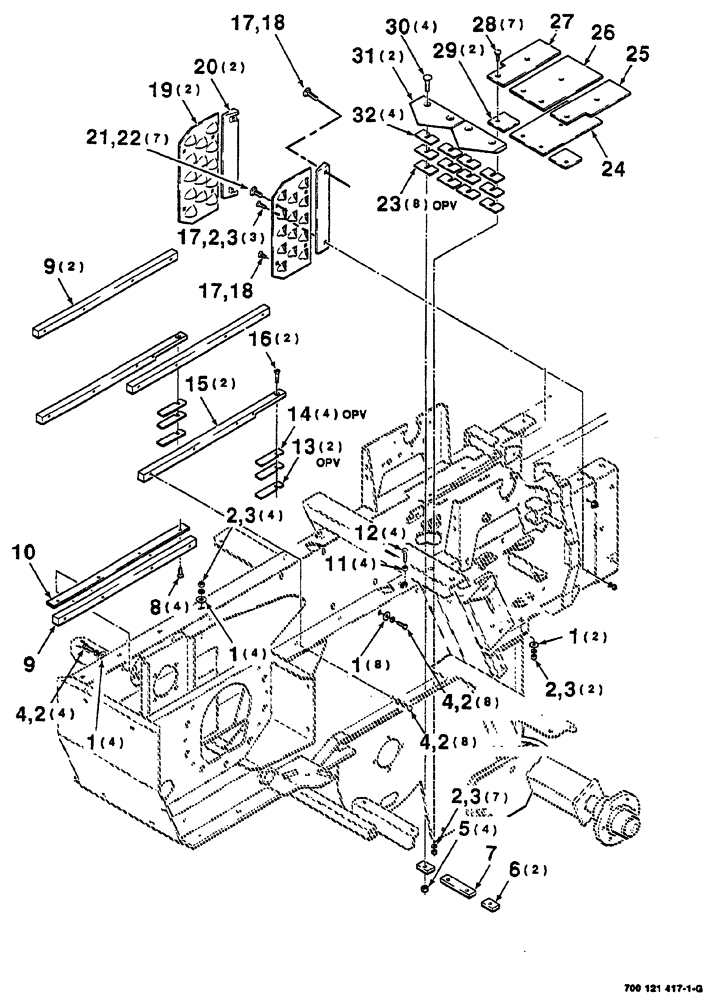

Запчасти Case IH 8555 (05-08) - BALE CHAMBER ASSEMBLY (FRONT) (13) - FEEDER

1

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened, plain, 3/8

18шт.

2

492-11038

LOCK WASHER,3/8"

36шт.

3

425-106

NUT,3/8"-16, Cl 5

16шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

20шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

lock hex flange top, 1/2-13, GR/G

4шт.

6

700108408

PAD

PAD knife

2шт.

7

700108409

PAD

PAD knife, center

1шт.

8

61-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

hex socket flat countersunk head cap, 3/8-16 x 1

4шт.

9

700108420

RAIL

3шт.

10

700108421

RAIL

hardened

1шт.

11

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

12

873083

SCREW

SCREW full thead hex cap, 3/8-16 x 1-1/2

4шт.

13

700108718

SHIM

2шт.

14

700108719

SHIM

4шт.

15

700108419

RAIL

lower

2шт.

16

164-53

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/2"

SCREW hex socket flat countersunk head cap, 3/8-16 x 1-1/2

2шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

5шт.

18

232-5316

FLANGE NUT,Flg, 3/8"-16

lock hex flange top, 3/8-16, GR/G

2шт.

19

700108397

PLATE

hay

2шт.

20

837971

CASTING

RESISTOR hay

2шт.

21

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

7шт.

22

231-5146

FLANGE NUT,3/8"-16

7шт.

23

700108406

ADJUSTING PLATE

.018

8шт.

24

700108414

PLATE

filler

1шт.

25

700108410

PLATE

left

1шт.

26

700108412

PLATE

center

1шт.

27

700108411

PLATE

right

1шт.

28

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

plow, 3/8-16 x 1-1/4

7шт.

29

700108413

PLATE

filler

2шт.

30

419-3828

CARRIAGE BOLT,1/2” - 13 x 1-3/4” L, Gr 5

plow, 1/2-13 x 1-3/4

4шт.

31

700703779

KNIFE

2шт.

32

700112533

ADJUSTING PLATE

.010

4шт.
