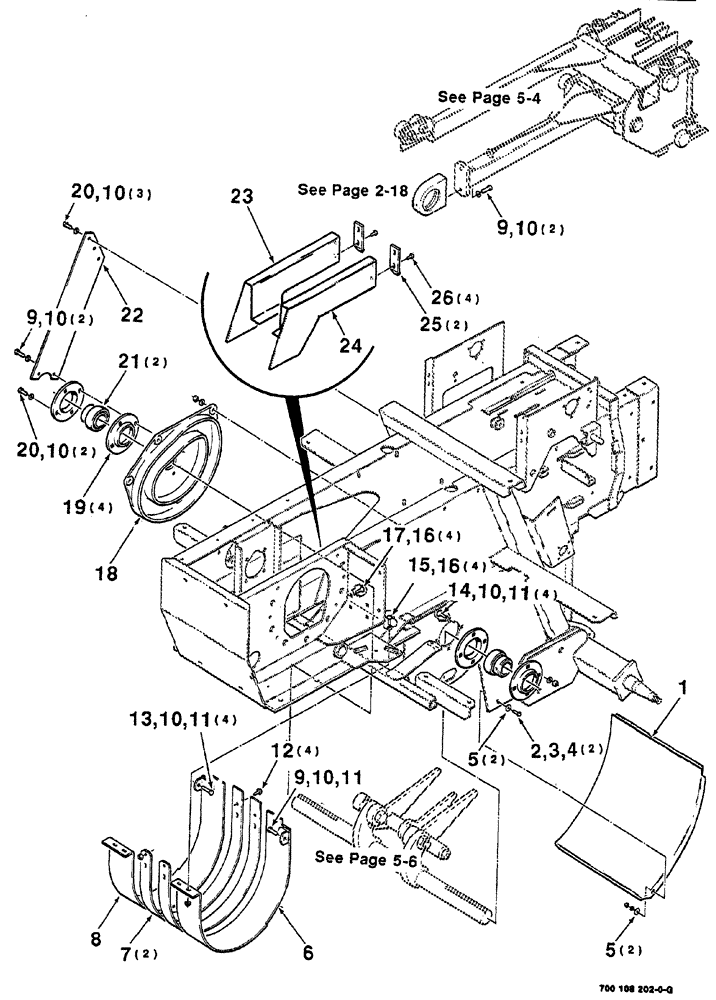

Запчасти Case IH 8555 (05-02) - CHARGE AND STUFFER ASSEMBLY (13) - FEEDER

1

700108279

COVER

PAN, WA

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened, plain, 3/8

4шт.

6

700108284

CURTAIN

WRAPPER WA, left

1шт.

7

700108179

CURTAIN

WRAPPER center

2шт.

8

700108287

CURTAIN

WRAPPER WA, right

1шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

5шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

18шт.

11

425-108

NUT,1/2" - 13, Gr 5

9шт.

12

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

14

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

15

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

16

231-5146

FLANGE NUT,3/8"-16

8шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

18

700108289

CAM

track

1шт.

19

714360

FLANGED BEARING

flange

4шт.

20

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

5шт.

21

700704263

SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm

spherical

2шт.

22

700108675

PLATE

1шт.

23

700108174

STRIPPER

WA, right

1шт.

24

700108173

STRIPPER

WA, left

1шт.

25

700108180

BAR

2шт.

26

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.
