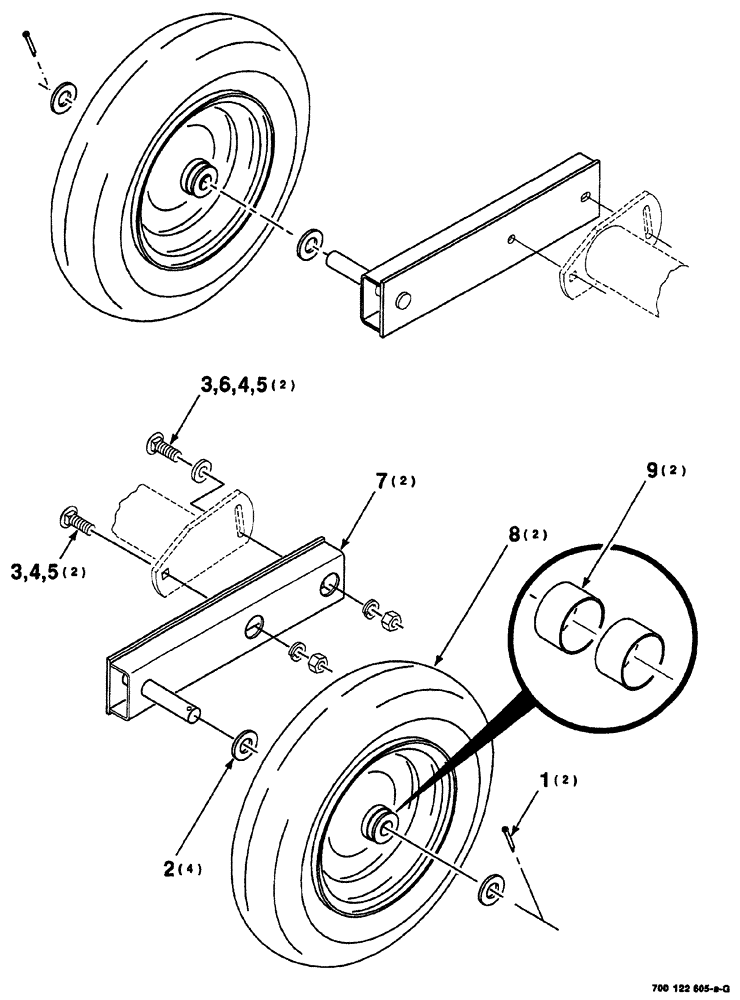

Запчасти Case IH 8555 (07-06) - GAUGE WHEEL ASSEMBLY (12) - MAIN FRAME

1

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

2

705574

WASHER,1 1/8" x 2" x .156", HDN

4шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened, plain, 1/2

2шт.

7

700108632

STRUT

WA

2шт.

8

700707953

RIM

WHEEL WHEEL gauge, Includes: Ref. 9

2шт.

9

700712011

BUSHING

2шт.

Part of Wheel P/N 700707953

1шт.
