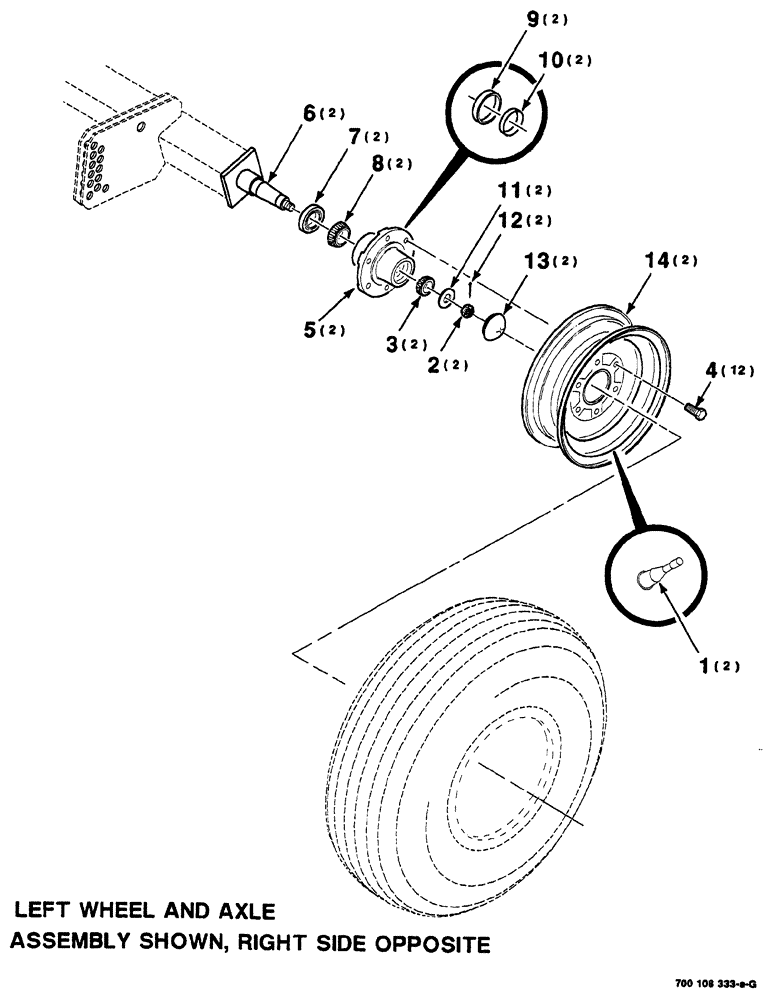

Запчасти Case IH 8555 (07-04) - WHEEL, HUB AND AXLE ASSEMBLY (12) - MAIN FRAME

1

A38261

VALVE

stem

2шт.

Part of 15 inch Hub Cap P/N A57879

1шт.

Part of 13.5 inch Hub Cap P/N 700707982

1шт.

2

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4-16

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

outer

2шт.

4

T52730

WHEEL BOLT

wheel, 9/16-18

12шт.

5

826255

HUB

ASSEMBLY, Includes: Ref. 9 and 10

2шт.

6

700108335

SPINDLE

WA

2шт.

7

844050

SEAL

2шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

inner

2шт.

9

663558R1

BEARING CUP

inner

2шт.

Part of Hub Assembly P/N 826255

1шт.

10

651817R1

BEARING CUP

cup, outer

2шт.

Part of Hub Assembly P/N 826255

1шт.

11

26971

WASHER

2шт.

12

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

13

518842R1

CAP

hub

2шт.

14

A57879

RIM

WHEEL standard 15", Includes: Ref. 1

2шт.

Parts A57879 and 700707982 are not insterchangeable

1шт.

700707982

RIM

WHEEL WHEEL high flotation 13.5", Includes: Ref. 1

2шт.

Parts A57879 and 700707982 are not insterchangeable

1шт.
