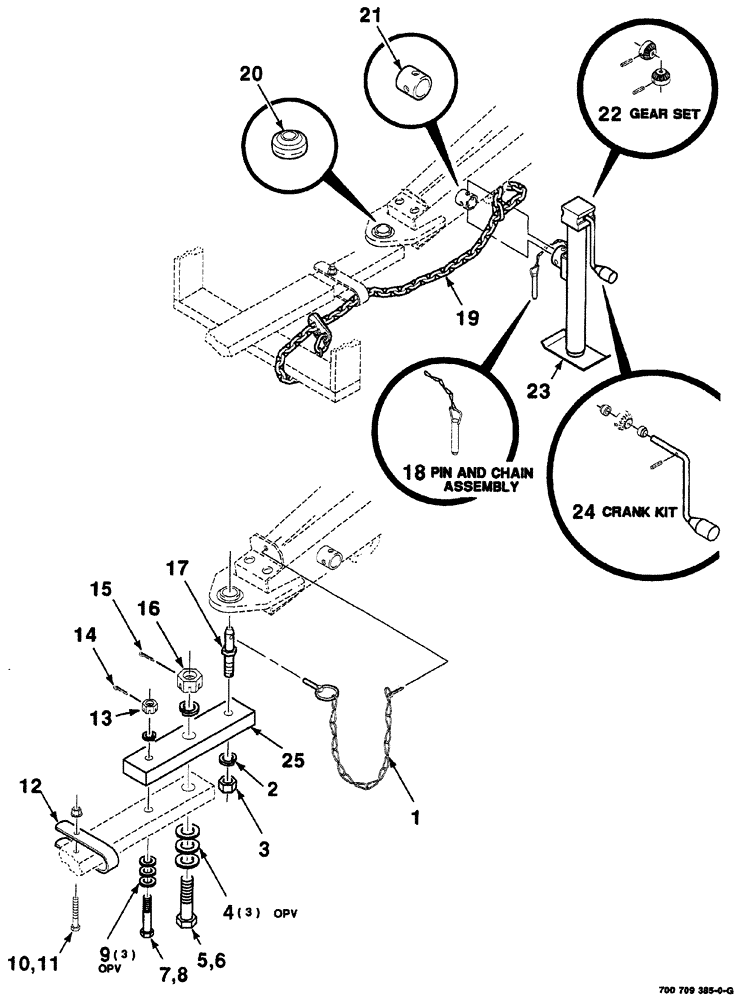

Запчасти Case IH 8555 (07-02) - HITCH AND JACK ASSEMBLY (12) - MAIN FRAME

1

63768

PIN

CHAIN linch

1шт.

2

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

3

425-1114

NUT,7/8"-14, G5

hex, 7/8-14

1шт.

4

705574

WASHER,1 1/8" x 2" x .156", HDN

3шт.

5

6232227

BOLT,Hex, 1" - 8 x 4", Drilled

1-8 x 4

1шт.

6

192-171

LOCK WASHER,1"

1шт.

7

6232813

BOLT,Hex, 5/8" - 11 x 3.18", Gr 5, Drilled

5/8-11 x 3-1/2

1шт.

8

492-11062

BEARING WASHER,5/8"

1шт.

9

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

3шт.

10

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

11

230-41110

LOCK NUT,5/8"-11, GA

lock hex top, 5/8-11, GR/B

1шт.

12

148558C1

CLEVIS

CHAIN safety

1шт.

13

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

1шт.

14

432-1028

COTTER PIN,5/32" x 1 3/4"

1шт.

15

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

16

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

17

7751886

HITCH PIN

1шт.

18

700709409

LINK CHAIN

PIN ASSEMBLY

1шт.

19

700705598

CHAIN (CE)

safety

1шт.

20

15-18

SPHERICAL BEARING,28.57mm ID x 80.43mm OD x 44.45mm W

BEARING tongue

1шт.

21

6227391

TUBE,2" OD, 1.88" Length

WA

1шт.

22

700702059

KIT

1шт.

23

700709385

JACK

1шт.

24

700702060

CRANKED HANDLE

KIT

1шт.

25

700108416

DRAWBAR

extension

1шт.
