Запчасти Case IH 8555 (08-06) - BALE TENSIONER HYDRAULIC CYLINDER ASSEMBLY, 700703899 HYDRAULIC CYLINDER COMPLETE (07) - HYDRAULICS

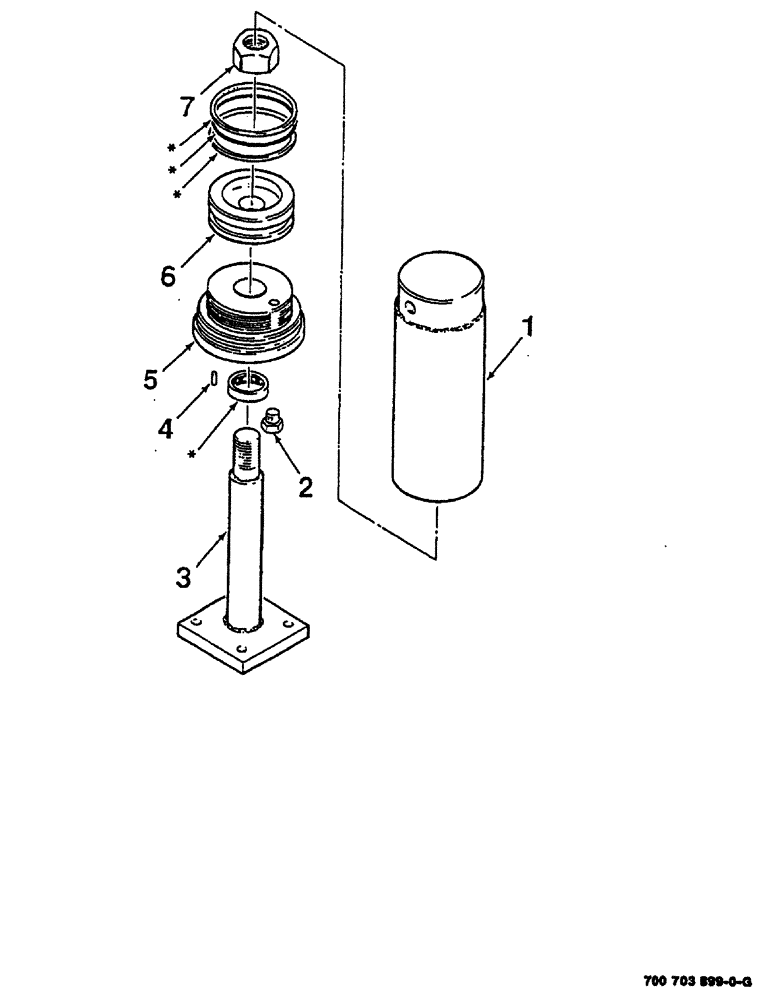

Схема запчастей Case IH 8555 - (08-06) - BALE TENSIONER HYDRAULIC CYLINDER ASSEMBLY, 700703899 HYDRAULIC CYLINDER COMPLETE (07) - HYDRAULICS
5
2
4
6
3
7
1

Артикул

Название

Примечание

Количество

700703899

CYLINDER

hydraulic, complete

1шт.

1

700704848

BARREL

BARREL

1шт.

2

700704845

BREATHER

1шт.

3

700704847

ROD

1шт.

4

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

set cup point hex socket, 1/4-20 x 3/4

1шт.

5

700704846

HEAD

1шт.

6

812645C1

PISTON

1шт.

7

7036676

NUT

1шт.

8

700704850

SEAL KIT

KIT O-ring and seal repair, Includes: Ref. marked with asterisks in art

1шт.

Выбрано товаров: 9
