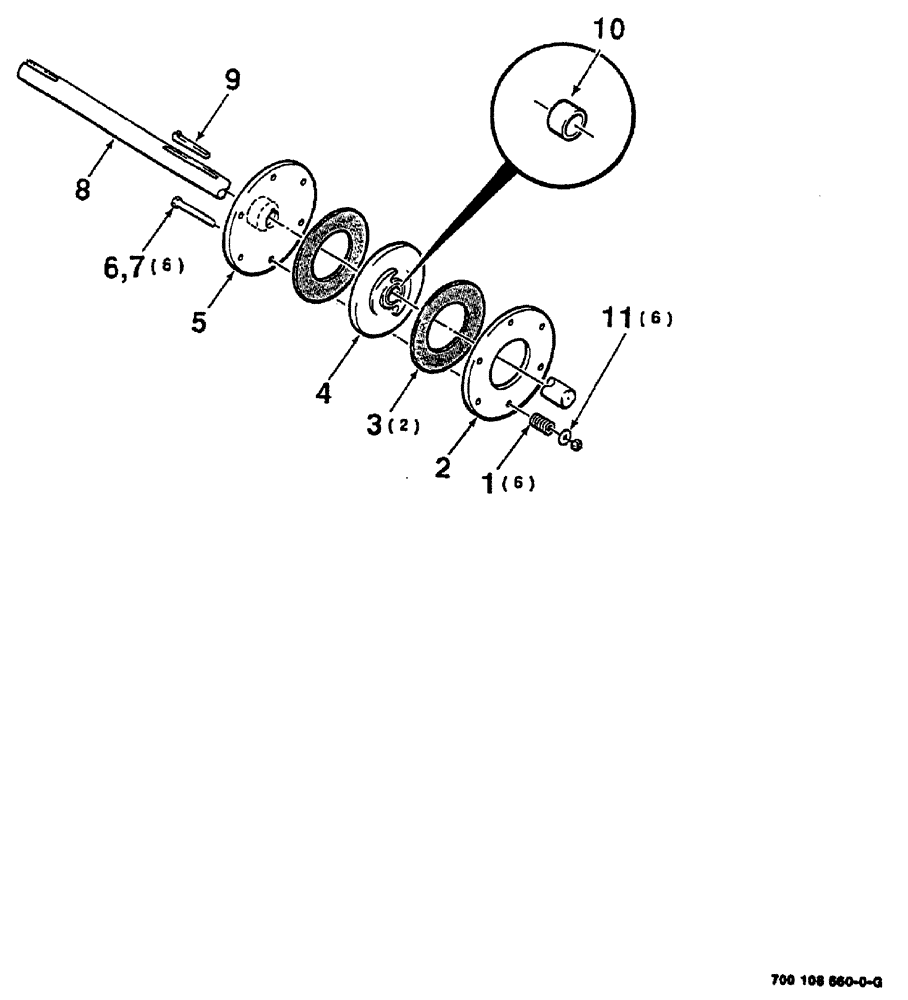

Запчасти Case IH 8555 (03-10) - CLUTCH ASSEMBLY Pickup

1

58107

SPRING

compression

6шт.

2

392464

LARGE PLATE

PLATE, LARGE pressure

1шт.

3

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

clutch

2шт.

4

700108665

CLUTCH ASSEMBLY

Includes: Ref. 10

1шт.

5

700108661

PLATE

WA, clutch

1шт.

6

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

7

230-4216

LOCK NUT,3/8"-16, GA

Center

6шт.

8

700108671

SHAFT

1шт.

9

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 x 1-1/2, GIB

1шт.

10

852749

BRONZE BUSHING

bronze

1шт.

Part of Clutch Assembly P/N 700108665

1шт.

11

495-21044

WASHER,3/8"

6шт.
