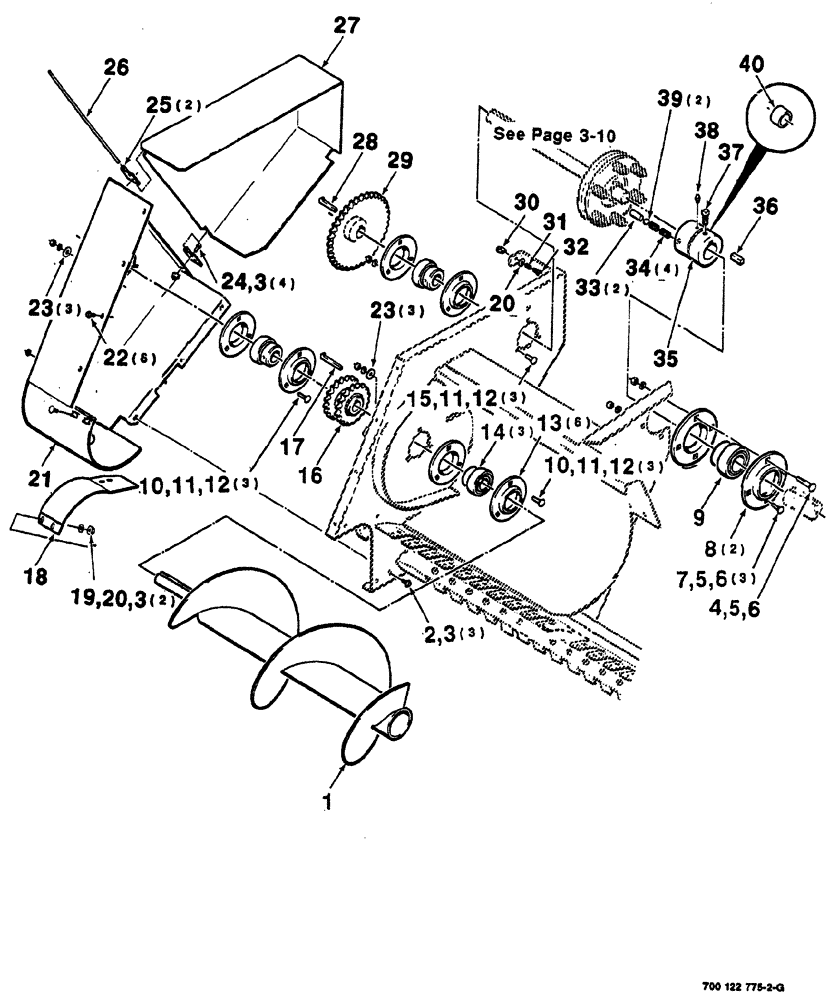

Запчасти Case IH 8555 (03-08) - AUGER AND DRIVE ASSEMBLY (RIGHT) Pickup

1

700108630

AUGER

WA, right

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

4

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

4шт.

7

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

3шт.

8

714360

FLANGED BEARING

flange spherical

2шт.

9

700704263

SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm

spherical

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

6шт.

11

492-11038

LOCK WASHER,3/8"

9шт.

12

425-106

NUT,3/8"-16, Cl 5

9шт.

13

617863R1

FLANGED BEARING

bearing

6шт.

14

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

spherical

3шт.

15

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

16

700122632

SPROCKET ASSY.

WA, double, 17-15T

1шт.

17

61978

KEY

GIB

1шт.

18

700131096

SUPPORT

wrapper, right

1шт.

19

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

20

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

21

700108650

PANEL

WA, right

1шт.

Use 700108650 prior to ordering 700134915 and 700131096

1шт.

700134915

PANEL

WA, right

1шт.

Use 700108650 prior to ordering 700134915 and 700131096

1шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

23

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened, plain, 3/8

6шт.

24

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

SCREW hex cap, 5/16-18 X 1/2

4шт.

25

700108658

SUPPORT

hinge

2шт.

26

6844344

PIN

hinge

1шт.

27

700108657

SHIELD

right

1шт.

28

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

GIB

1шт.

29

700108659

SPROCKET ASSY.

WA, 60B36

1шт.

30

7894967

HANDLE

fastener

1шт.

31

7758212

SPRING

compression

1шт.

32

7894975

CLIP

fastener

1шт.

33

37-1820

DOWEL,1/2" x 1 1/4"

PIN dowel, 1/2 x 1-1/4

2шт.

34

58511

COMPRESSION SPRING

4шт.

35

700108666

HUB

ASSEMBLY, Includes: Ref. 38

1шт.

36

861203

KEY

straight, 1/2 x1-1/2

1шт.

37

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

cup point square head, 1/2-13 x 1

1шт.

38

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

Part of Hub Assembly P/N 700108666

1шт.

39

700108669

LARGE PLATE

PLATE, LARGE SLUG

2шт.

40

740233

BUSHING

oilite

1шт.
