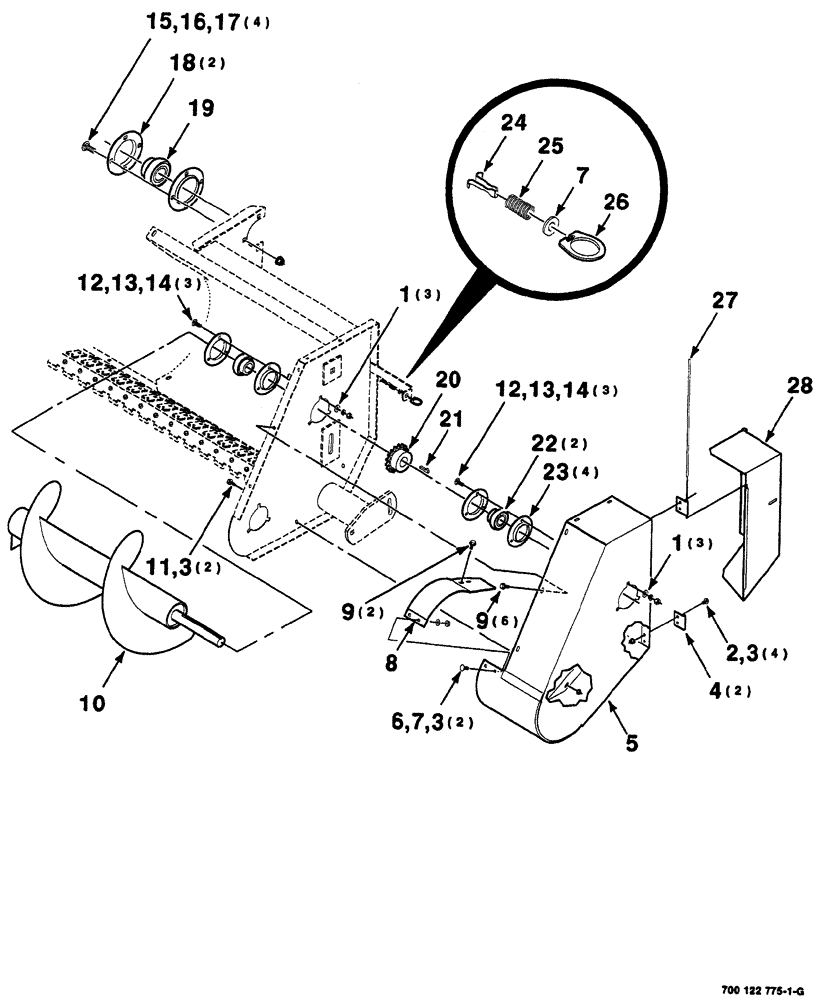

Запчасти Case IH 8555 (03-06) - AUGER AND DRIVE ASSEMBLY (LEFT) Pickup

1

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened, plain, 3/8

6шт.

2

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

SCREW hex cap, 5/16-18 x 1/2

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

4

700108658

SUPPORT

hinge

2шт.

5

700108649

PANEL

WA, left

1шт.

Use 700108649 prior to ordering 700134917 or 700131095.

1шт.

700134917

PANEL

WA, left

1шт.

Use 700108649 prior to ordering 700134917 or 700131095.

1шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

8

700131095

SUPPORT

wrapper, left

1шт.

Use 700108649 prior to ordering 700134917 or 700131095.

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

10

700108623

AUGER

WA, left

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

6шт.

13

492-11038

LOCK WASHER,3/8"

6шт.

14

425-106

NUT,3/8"-16, Cl 5

6шт.

15

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

17

425-108

NUT,1/2" - 13, Gr 5

4шт.

18

714360

FLANGED BEARING

flange

2шт.

19

700704263

SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm

spherical

1шт.

20

700710493

SPROCKET ASSY.

WA, 50B17

1шт.

21

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

GIB

1шт.

22

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

spherical

2шт.

23

617863R1

FLANGED BEARING

bearing

4шт.

24

7894975

CLIP

1шт.

25

7758212

SPRING

compression

1шт.

26

7894967

HANDLE

fastener

1шт.

27

6474316

PIN

hinge

1шт.

28

700108656

SHIELD

left

1шт.
