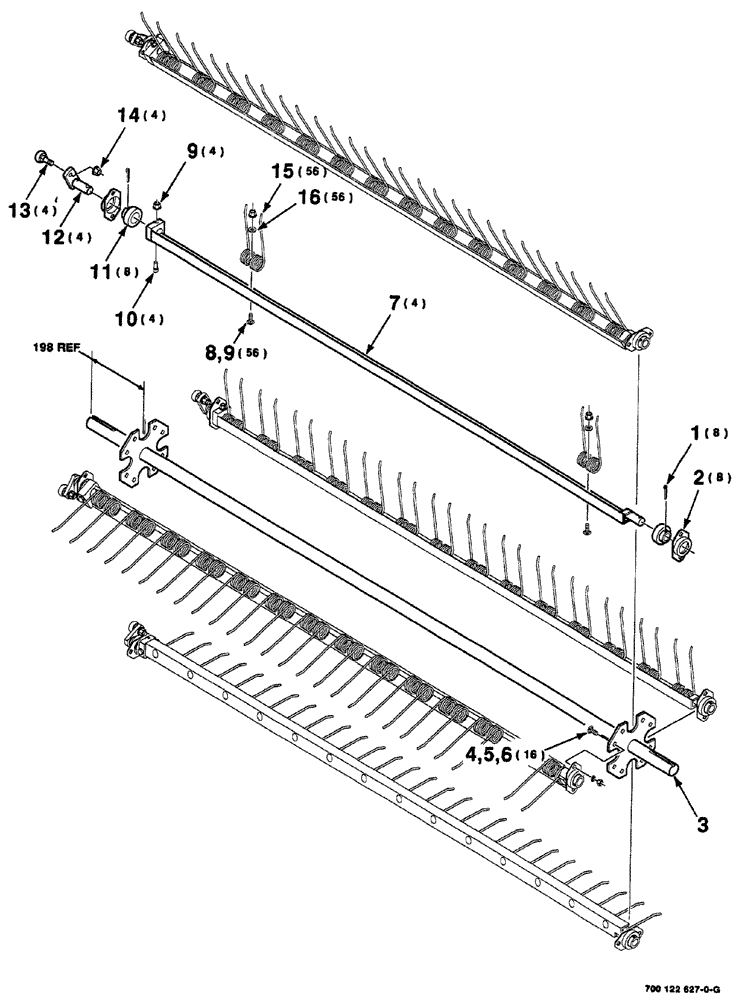

Запчасти Case IH 8555 (03-04) - PICKUP ROTOR ASSEMBLY Pickup

1

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

8шт.

2

700108622

FLANGED BEARING

bearing

8шт.

3

700108609

ROTOR

WA

1шт.

4

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

16шт.

5

492-11038

LOCK WASHER,3/8"

16шт.

6

425-106

NUT,3/8"-16, Cl 5

16шт.

7

700122625

ANGLE

WA

4шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

56шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

lock hex flange top, 3/8-16, GR/G

60шт.

10

61-33836

HEX SOC SCREW,3/8 - 16 x 2-1/4"

cap hex socket head, 3/8-16 x 2-1/4, SPL

4шт.

11

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

cylindrical

8шт.

12

700108618

ARM

WA

4шт.

Use 700108618 prior to ordering 700131723.

1шт.

700131723

CRANK

WA

4шт.

Use 700108618 prior to ordering 700131723.

1шт.

13

700705612

CAM FOLLOWER

cam

4шт.

14

700707867

NUT

lock hex flange top, 1/2-20, GR/G

4шт.

15

700703860

REEL TINE,Coiled, 2 Prongs, 164mm L

double

56шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened, plain, 3/8

56шт.
