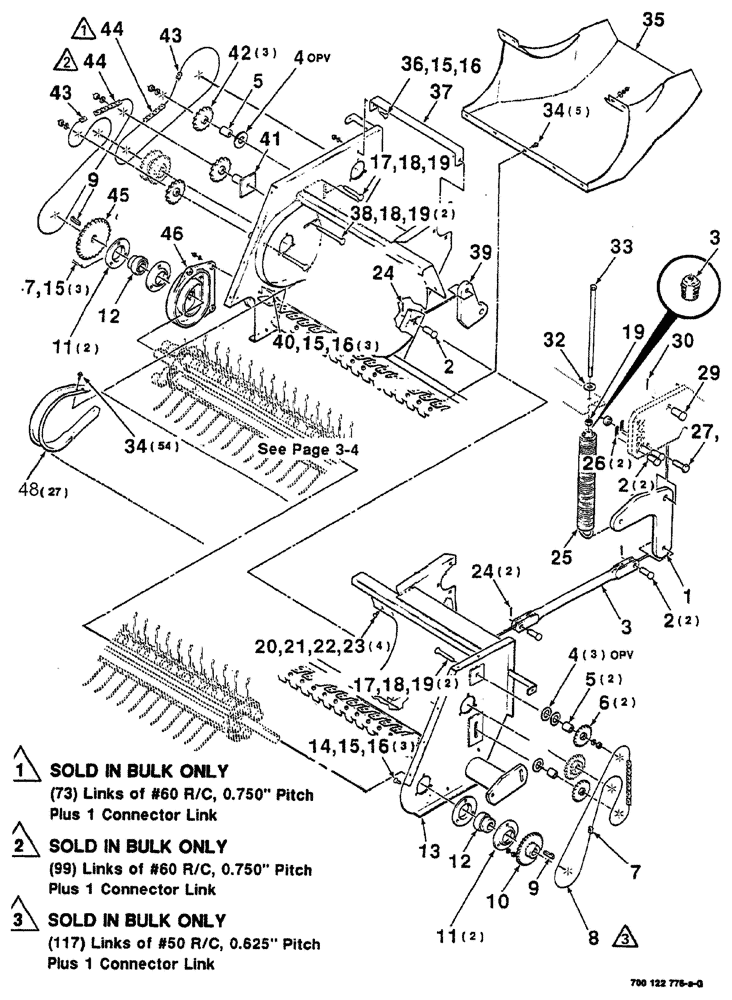

Запчасти Case IH 8555 (03-02) - PICKUP ASSEMBLY Pickup

1

700108643

SUPPORT

1шт.

2

A35113

PIN

clevis 3/4 x 2 inch

5шт.

3

700108640

STRUT

WA

1шт.

4

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 x 18 gauge NRMB

4шт.

5

6176655

BUSHING

3шт.

6

211623C91

SPROCKET

idler 50B17

2шт.

7

241-1315

LINK, CONNECTING

#50 r/c

1шт.

8

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller #50 (10 foot bulk)

1шт.

Use 117 Links of #50 R/C, 0.625 inch Pitch

1шт.

9

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

gib

2шт.

10

700108635

SPROCKET ASSY.

WA 50B28

1шт.

11

617863R1

FLANGED BEARING

bearing

4шт.

12

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

spherical

2шт.

13

700108576

FRAME

WA

1шт.

14

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

15

492-11038

LOCK WASHER,3/8"

10шт.

16

425-106

NUT,3/8"-16, Cl 5

7шт.

17

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2

3шт.

18

492-11062

BEARING WASHER,5/8"

5шт.

19

425-1010

NUT,5/8"-11, G5

6шт.

20

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

21

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

22

492-11031

LOCK WASHER,5/16"

4шт.

23

425-105

NUT,5/16"-18, G5

4шт.

24

432-820

COTTER PIN,1/8" x 1 1/4"

3шт.

25

6522700

SPRING

1шт.

26

T54573

PIN

0.120 wire

2шт.

27

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

28

230-42112

LOCK NUT,3/4"-10, GA

3/4-10 Hex

1шт.

29

480255R1

HEADED PIN,1" x 2 3/16"

clevis 1 x 2

1шт.

30

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

31

6845879

PLUG

spring

1шт.

32

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

1шт.

33

7701808

BOLT,Hex, 5/8" - 11 x 17", Grade 5

special 5/8-11 x 17

1шт.

34

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

59шт.

35

700108600

CHUTE ASSY.

WA

1шт.

36

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

37

700108683

SUPPORT

brace

1шт.

38

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

carriage 5/8-11 x 5

2шт.

39

700108638

LINK

hydraulic

1шт.

40

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

41

700108636

SUPPORT

WA

1шт.

42

541857R92

SPROCKET,15T

idler 15T

3шт.

43

241-1316

LINK,19.05mm Pitch

connector #60 R/C

2шт.

44

611362R91

CHAIN (AG)

roller #60 (10 foot bulk)

2шт.

Use73 Links of #60 R/C, 0.750 inch Pitch Plus 1 Connector Link

1шт.

Use 99 Links of #60 R/C, 0.750 inch Pitch Plus 1 Connector Link

1шт.

45

6859821

SPROCKET ASSY.

WA 60B28

1шт.

46

700108672

CAM

track

1шт.

46

700116125

HOUSING

track

1шт.

47

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

48

700108607

ANTI-WRAP PLATE

wrapper

27шт.
