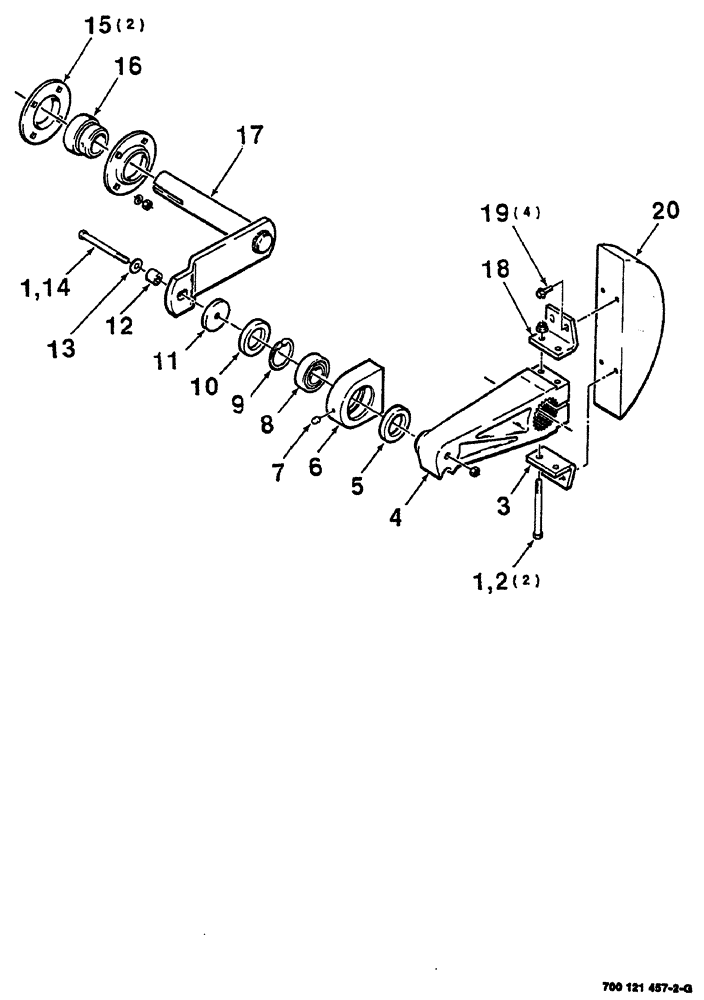

Запчасти Case IH 8555 (02-18) - PLUNGER ARM ASSEMBLY Driveline

1

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW hex cap, 5/8-11 x 6

3шт.

2

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

3

700108687

ANGLE

1шт.

4

700108509

CRANK

arm

1шт.

5

8744047

SEAL

grease, inner

1шт.

6

6855472

BEARING HOUSING

bearing

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

8051005

ROLLER BEARING,55mm ID x 100mm OD x 25mm W

roller, cylindriclal

1шт.

9

100-21393

SNAP RING,3.938", Int, #393

1шт.

10

8744054

SEAL

dust

1шт.

11

700108510

WASHER

1шт.

12

700107075

BUSHING,16mm ID x 25.4mm OD x 27mm L

1шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

1шт.

14

230-42110

LOCK NUT,5/8"-11, GA

hex center lock, 5/8-11

1шт.

15

714360

FLANGED BEARING

flange

2шт.

16

712158

SPHERICAL BEARING,2" ID x 100 mm OD

spherical

1шт.

17

700108511

ARM

WA

1шт.

18

700108686

ANGLE

1шт.

19

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

20

700108685

WEIGHT

counter balance

1шт.
