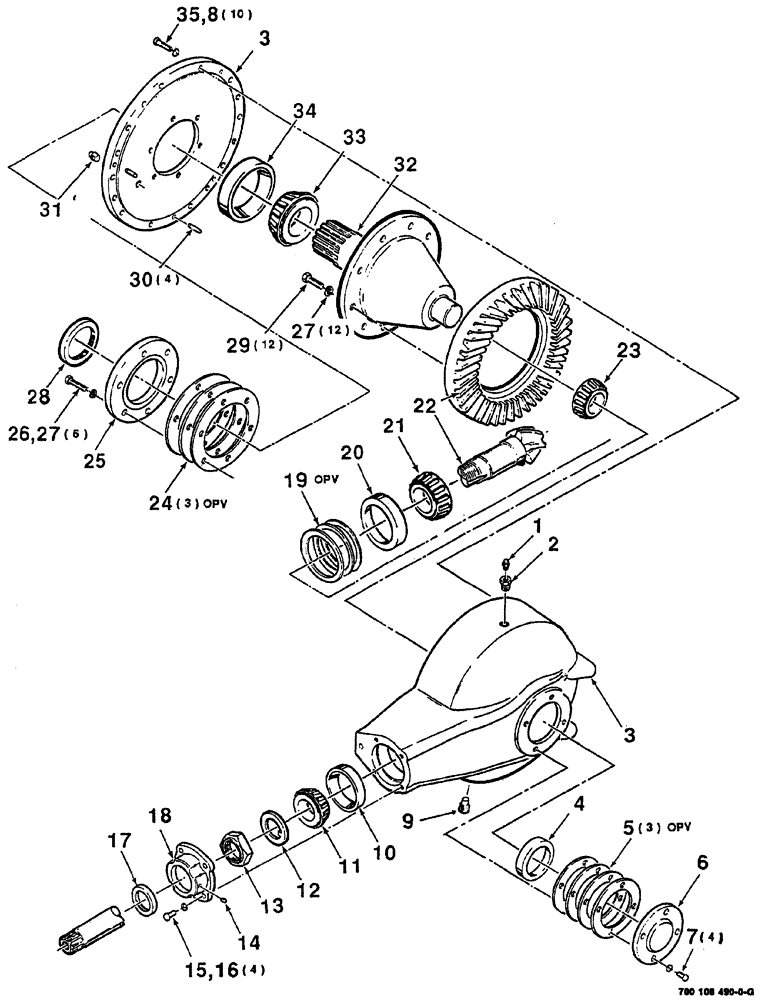

Запчасти Case IH 8555 (02-16) - GEARBOX ASSEMBLY, 700108490 GEARBOX ASSEMBLY, COMPLETE Driveline

700108490

GEARBOX ASSY

complete

1шт.

1

152127H1

BREATHER,1/8"-27, Short

PLUG vent

1шт.

2

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

1шт.

3

700108491

DRIVE

GEARBOX ASSEMBLY, Includes: Ref. 8, 30, and 35

1шт.

4

L35931

BEARING CUP

bearing cap, left

1шт.

5

700703813

ADJUSTING PLATE

left cap, .010

3шт.

Parts 700703813, 700703814 and 700703815 are not interchangeable.

1шт.

700703814

SHIM

left cap, .012

3шт.

Parts 700703813, 700703814 and 700703815 are not interchangeable.

1шт.

700703815

SHIM

left cap, .015

3шт.

Parts 700703813, 700703814 and 700703815 are not interchangeable.

1шт.

6

700108495

CAP

left

1шт.

7

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4, grade 8

4шт.

8

492-11038

LOCK WASHER,3/8"

10шт.

Part of Gearbox Assembly P/N 700108491, includes right cover plate

1шт.

9

8746638

PLUG

drain magnet

1шт.

10

700703794

BEARING CUP,120 mm OD x 23.444 mm

front cup

1шт.

11

700703795

ROLLER BEARING,63.5 mm ID x 30.162 mm

front

1шт.

12

700703803

WASHER

stake

1шт.

13

700703806

NUT

stake

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

17

700703804

SEAL

front

1шт.

18

700108494

CAP

front

1шт.

19

700703810

SHIM

front, .010

1шт.

Parts 700703810, 700703811 and 700703812 are not interchangeable.

1шт.

700703811

SHIM

front, .012

1шт.

Parts 700703810, 700703811 and 700703812 are not interchangeable.

1шт.

700703812

SHIM

front, .015

1шт.

Parts 700703810, 700703811 and 700703812 are not interchangeable.

1шт.

20

700703796

BEARING CUP,152.4 mm OD x 31.75 mm

front cup, inner

1шт.

21

700703797

ROLLER BEARING,68.26mm ID x 46.04mm W

front, inner

1шт.

22

700710979

GEAR-SET

pinion

1шт.

23

630203C91

TAPERED BEARING

left cone, cap

1шт.

24

700703822

SHIM

right cap, .010

3шт.

Parts 700703822, 700703823 and 700703824 are not interchangeable.

1шт.

700703823

SHIM

right cap, .012

3шт.

Parts 700703822, 700703823 and 700703824 are not interchangeable.

1шт.

700703824

SHIM

right cap, .015

3шт.

Parts 700703822, 700703823 and 700703824 are not interchangeable.

1шт.

25

700108496

CAP

PLATE right

1шт.

26

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

18шт.

28

700703805

SEAL

right cap

1шт.

29

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

30

37-1624

DOWEL,3/8" x 1 1/2"

dowel

4шт.

Part of Gearbox Assembly P/N 700108491, includes right cover plate

1шт.

31

746305

PLUG

square head pipe, 1/2-14 NPT

1шт.

32

700108497

RING

GEAR hub

1шт.

33

L33736

ROLLER BEARING

CONE right

1шт.

34

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

BEARING right

1шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

10шт.

Part of Gearbox Assembly P/N 700108491, includes right cover plate

1шт.
