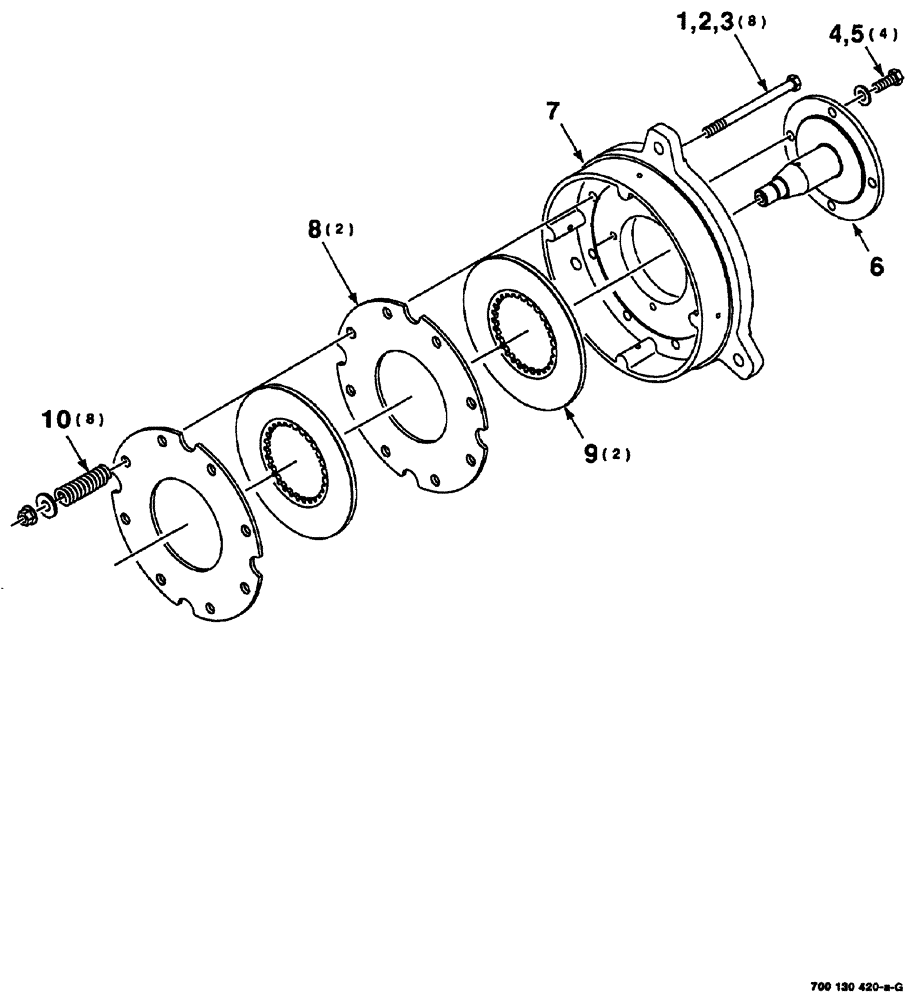

Запчасти Case IH 8555 (02-12) - SLIP CLUTCH (PRIMARY) DRIVE ASSEMBLY (S.N. CFH0046873 AND LATER) Driveline

1

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

SCREW hex cap, 3/8-16 x 4-1/2

8шт.

2

495-21044

WASHER,3/8"

8шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock hex flange top, 3/8-16, GR/G

8шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain hardened, 3/8

4шт.

6

700130422

HOUSING

PILOTclutch, WA

1шт.

7

700130421

HOUSING

clutch

1шт.

8

6522866

CLUTCH PLATE

2шт.

9

700108820

DISC

DISC ASSEMBLY friction

2шт.

10

700707442

SPRING

compression

8шт.
